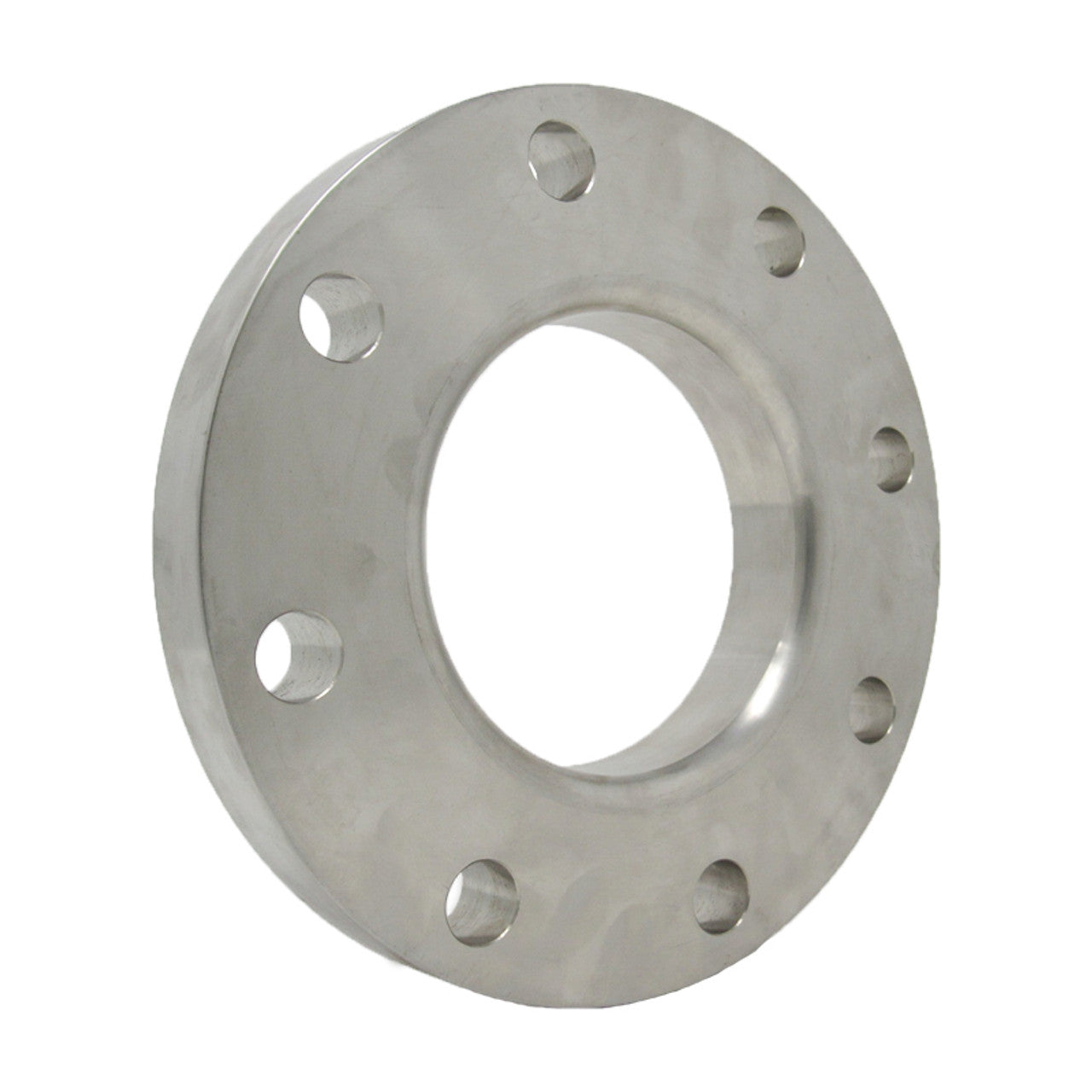

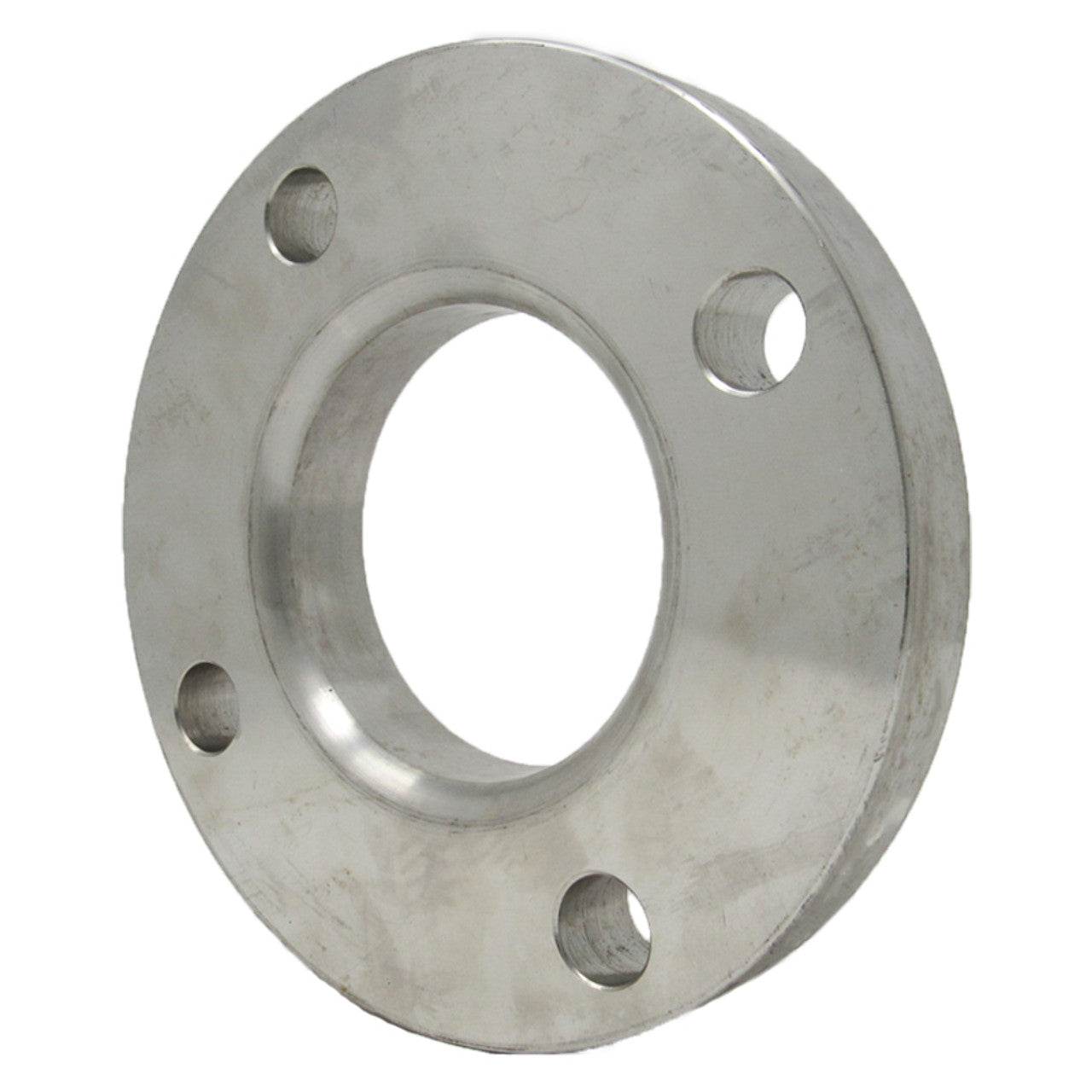

Lap Joint Flanges

Lap joint flanges are used in piping systems built around stub ends, where easier bolt-hole alignment and simpler disassembly matter. Rather than creating a fixed connection on their own, lap joint flanges act as the backing flange in the assembly, allowing rotation around the stub end during installation. That makes them a practical choice for piping systems that need more flexibility during fit-up and better serviceability once the line is in operation.

PipingNow offers lap joint flanges in the pressure classes and material options currently used across this product group, including 150# and 300# classes in 304L stainless steel, 316L stainless steel, A105 black carbon steel, and A105 galvanized carbon steel. For buyers searching specifically for lap joint flanges, that makes it easier to compare the correct flange style across available materials and sizes without sorting through a broader flange category filled with multiple connection types.

Made for Stub End Assemblies

The main advantage of a lap joint flange is how it works with a compatible stub end. Because the backing flange can rotate, installers get more freedom when lining up bolt holes during assembly. That can make field installation easier and can also help on systems that may need to be opened later for inspection, cleaning, maintenance, or future modification.

Lap joint flanges are often used for:

stub end piping assemblies
systems that benefit from rotating flange alignment
lines that may be dismantled for cleaning or inspection
process piping with regular maintenance access
fabricated systems that may need future changes
industrial piping runs where easier bolt-hole alignment helps simplify installation

150# and 300# Lap Joint Flanges

Lap joint flange selection usually starts with pressure class, nominal size, and compatibility with the rest of the assembly. In this collection, 150# lap joint flanges cover the broadest range of materials, while 300# lap joint flanges are available in stainless steel options for systems that require a higher class. Keeping these products under a dedicated lap joint flange page helps buyers compare the right flange type across the available pressure classes without jumping through unrelated flange styles.

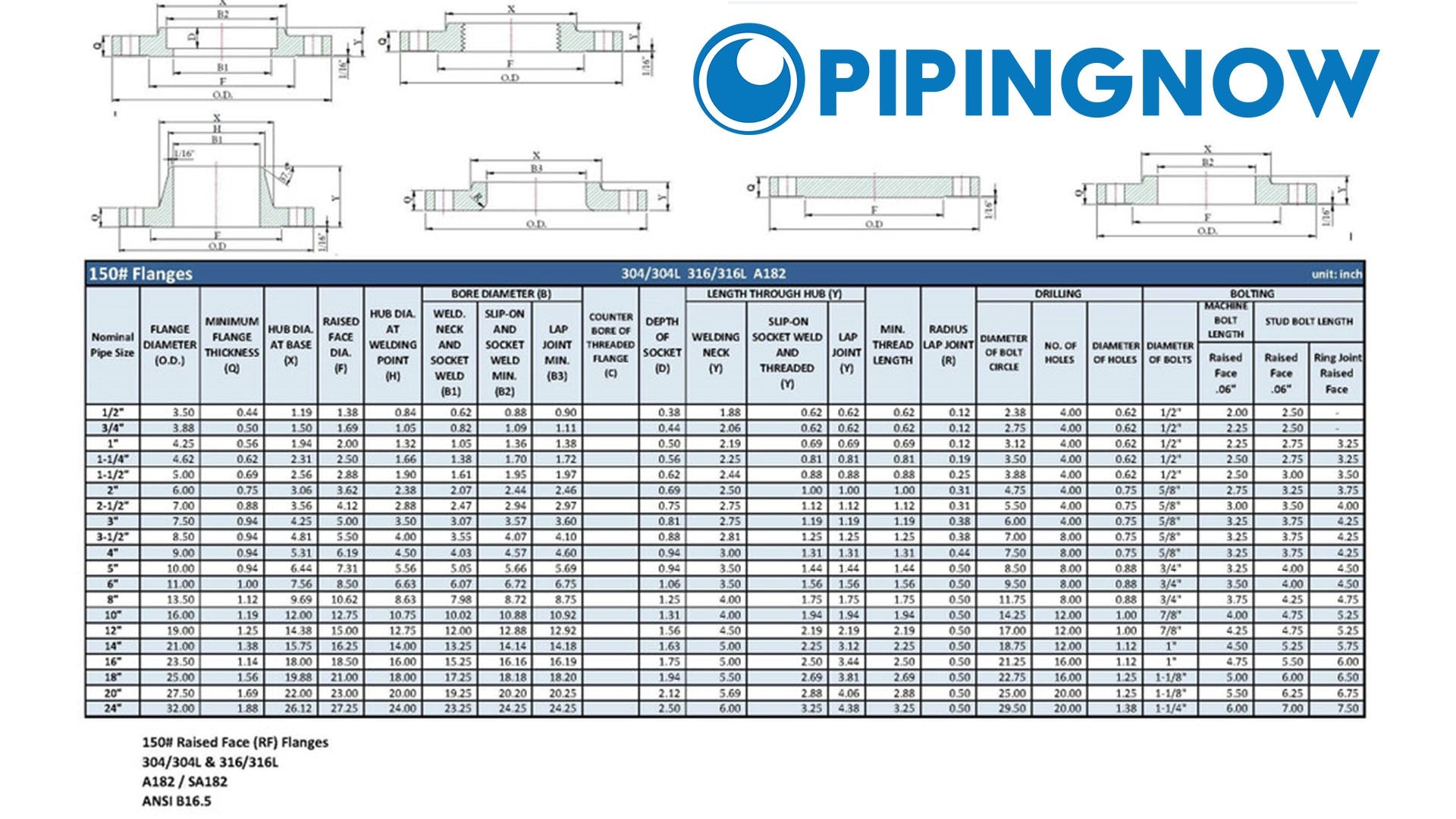

150# lap joint flanges

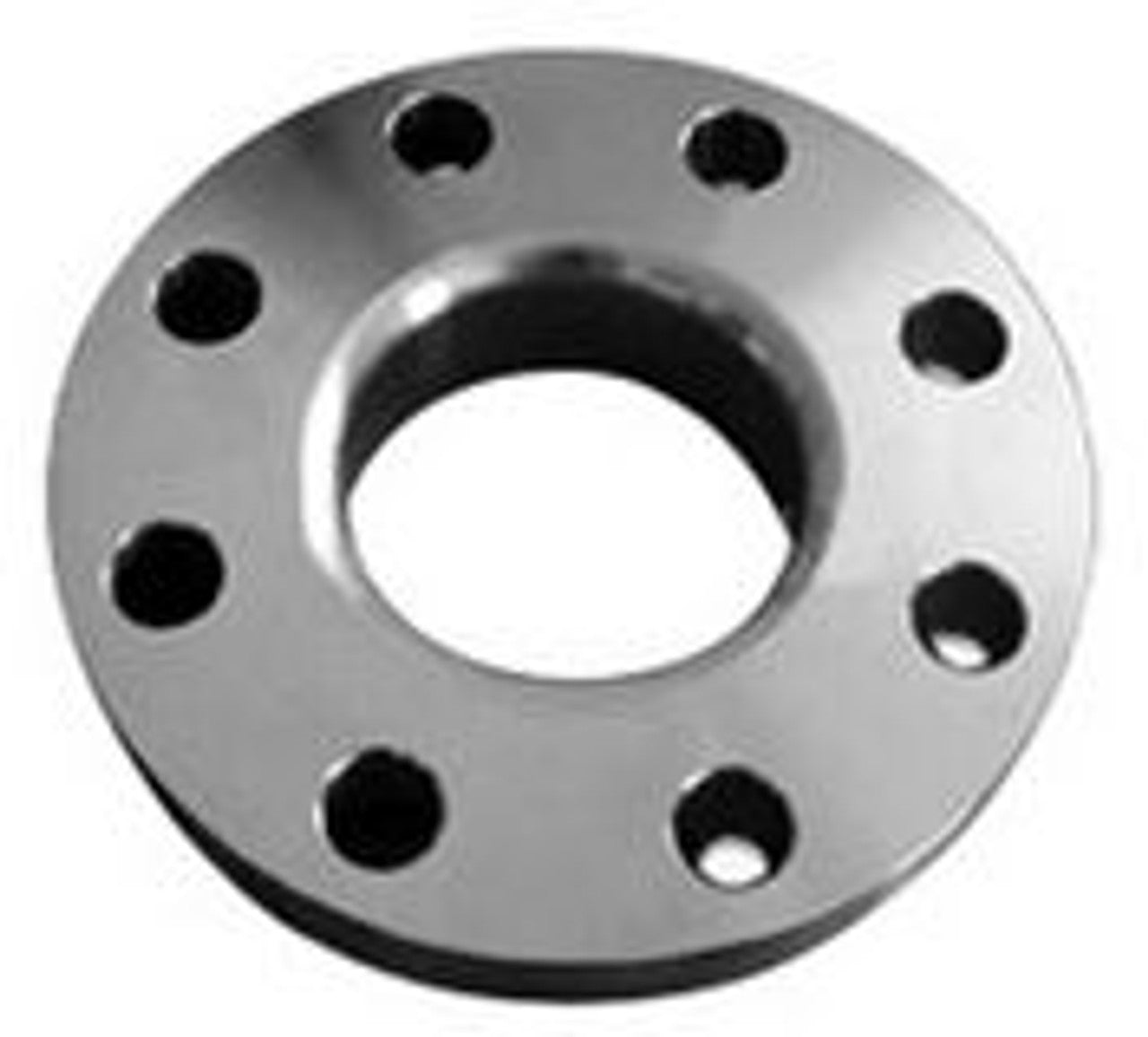

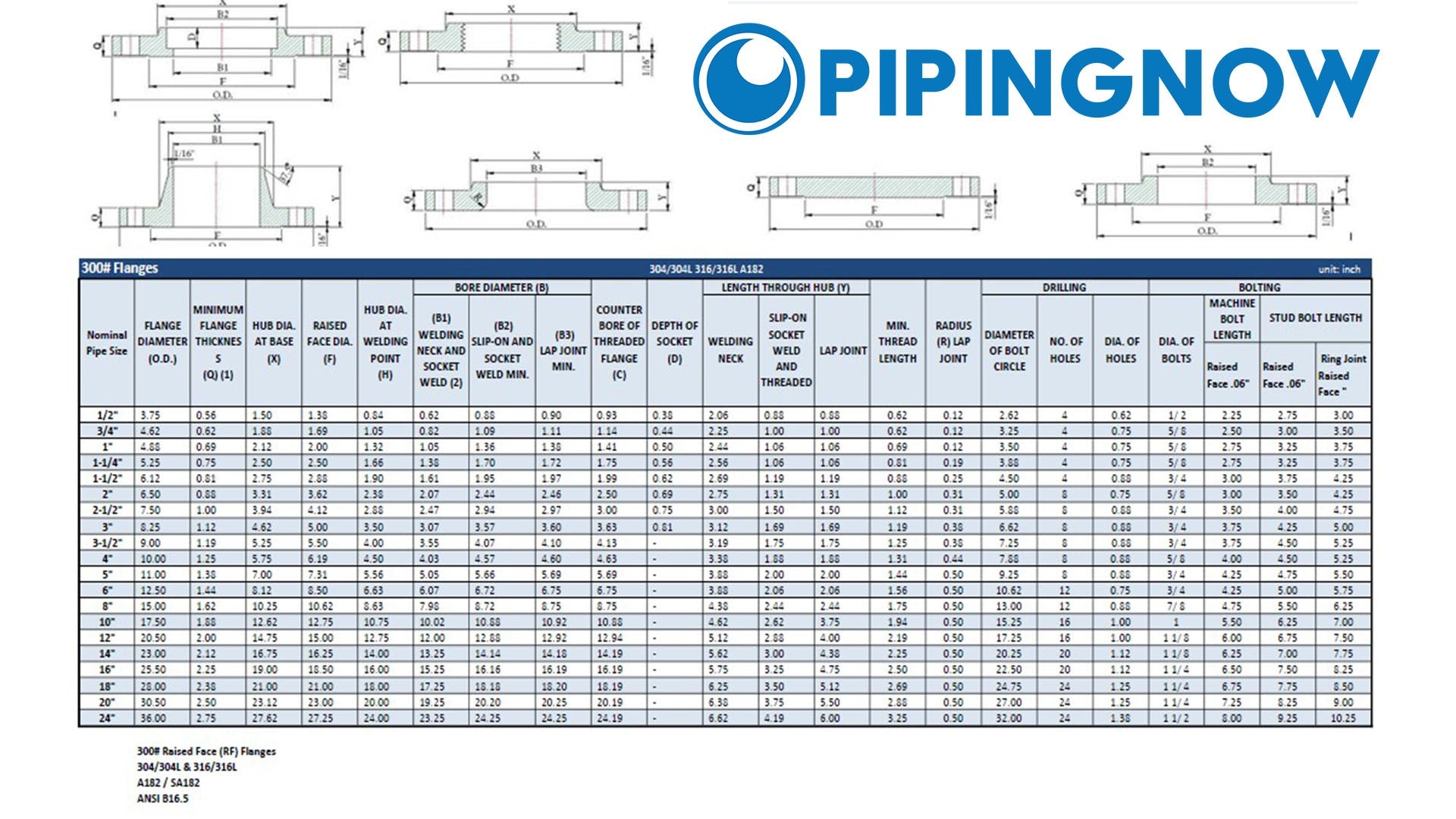

300# lap joint flanges
304L stainless steel lap joint flanges

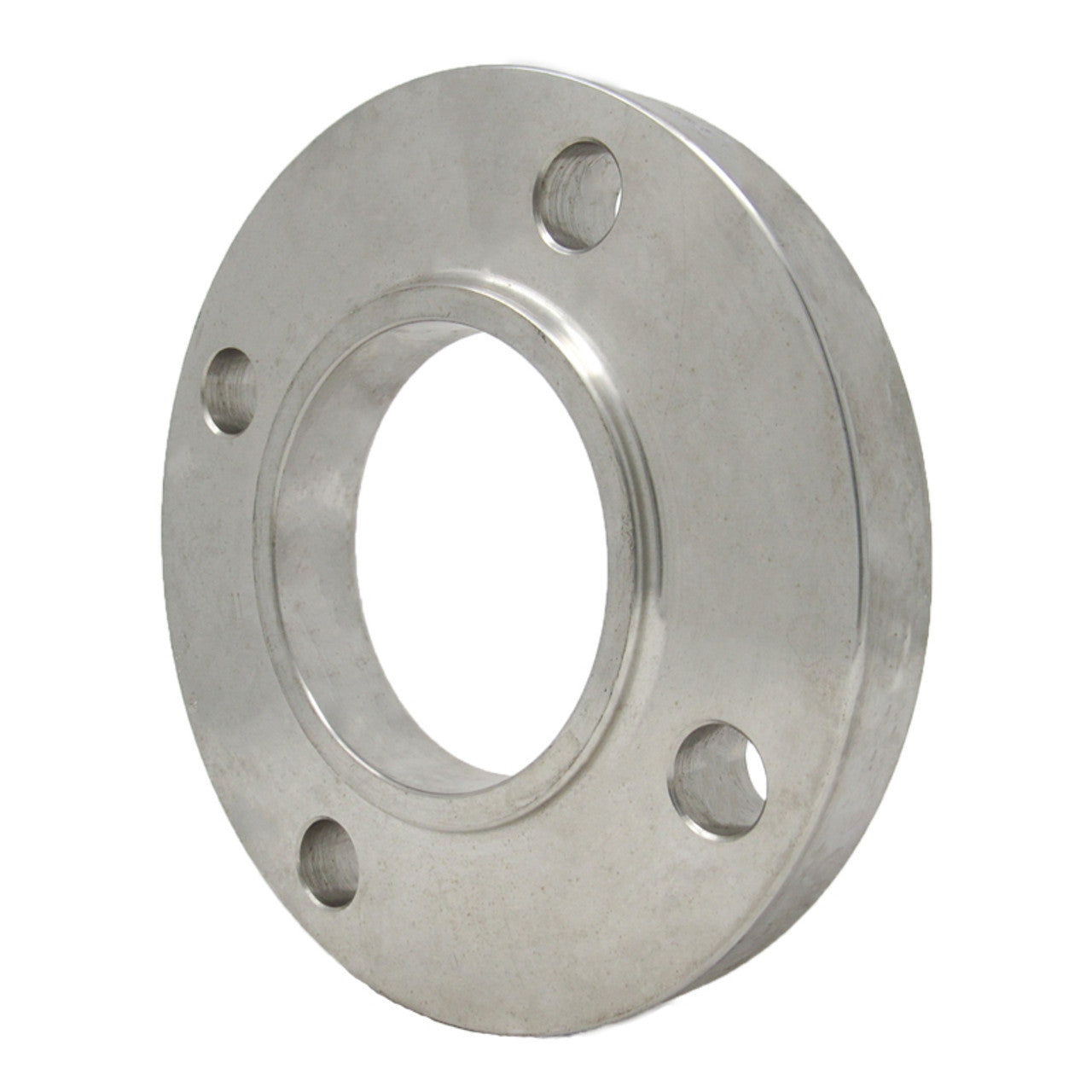

316L stainless steel lap joint flanges
A105 black carbon steel lap joint flanges
A105 galvanized carbon steel lap joint flanges

Material Options for Different Service Conditions

Material selection can be just as important as pressure class. Stainless steel lap joint flanges are a common fit where corrosion resistance and material consistency are priorities, while carbon steel lap joint flanges are often chosen for general industrial service. Galvanized carbon steel options add another layer of protection for applications where that finish is preferred. Because this collection includes both stainless and carbon steel lap joint flanges, it gives buyers a practical way to shop by flange type first and material second.

What to Check Before Ordering

Before ordering a lap joint flange, confirm the pressure class, nominal size, material requirements, and compatibility with the intended stub end and mating components. Since lap joint flanges are part of a specific assembly style, it is important to verify that the job actually calls for a lap joint setup rather than a blind, weld neck, slip on, threaded, or socket weld flange. Matching the assembly style is just as important as matching the class and size.

Before ordering, check:

pressure class
nominal size
stub end compatibility
material requirements
mating flange details
service conditions
project specification for lap joint flange style

Where Lap Joint Flanges Fit Best

Lap joint flanges are a strong fit where the piping system may need to be opened, adjusted, or rebuilt more often than a typical fixed connection. They are commonly used in process piping and other industrial systems where serviceability matters. For buyers who already know the line is built around stub ends and a lap joint arrangement, shopping a dedicated lap joint flanges category is the fastest way to get into the right product type without sorting through blind flanges, slip on flanges, or other flange styles that serve a different purpose.

FAQs

What is a lap joint flange?
A lap joint flange is a backing flange used with a compatible stub end, allowing the flange to rotate for easier alignment during assembly.

What pressure classes are available?
Lap joint flanges in this collection are available in 150# and 300# pressure classes.

What materials are offered?
Material options include 304L stainless steel, 316L stainless steel, A105 black carbon steel, and A105 galvanized carbon steel.

Why choose a lap joint flange?
Lap joint flanges are often chosen for easier bolt-hole alignment, stub end compatibility, and piping systems that may be disassembled for maintenance or inspection.

Is a lap joint flange used by itself?
No. A lap joint flange is typically used as part of an assembly with a compatible stub end.

What should I match before ordering?
Match the pressure class, nominal size, material requirements, stub end compatibility, mating flange details, and the specified flange style for the job.

How is a lap joint flange different from a slip on flange?
A lap joint flange is used with a stub end and allows flange rotation for alignment, while a slip on flange is designed to slide over pipe before welding.
