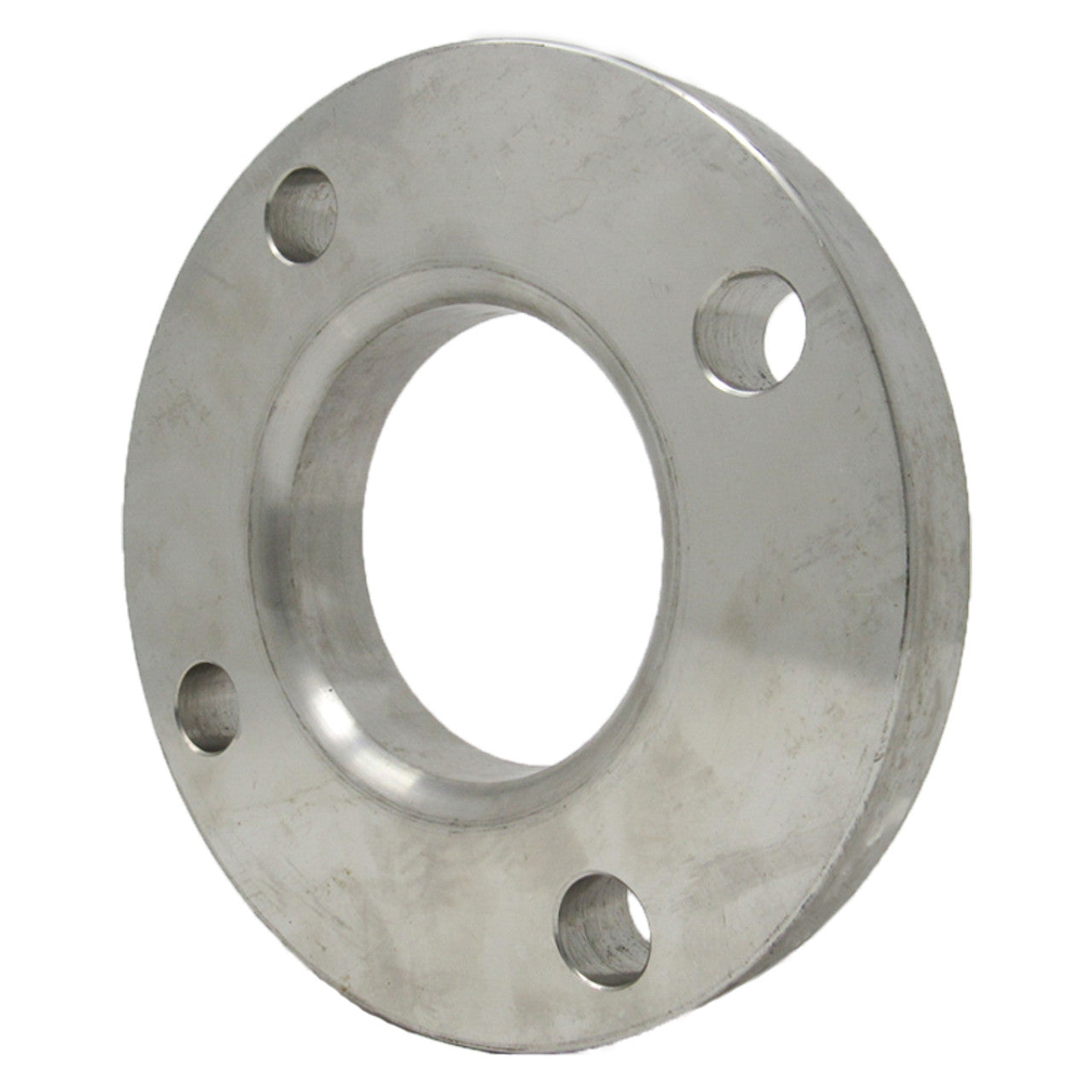

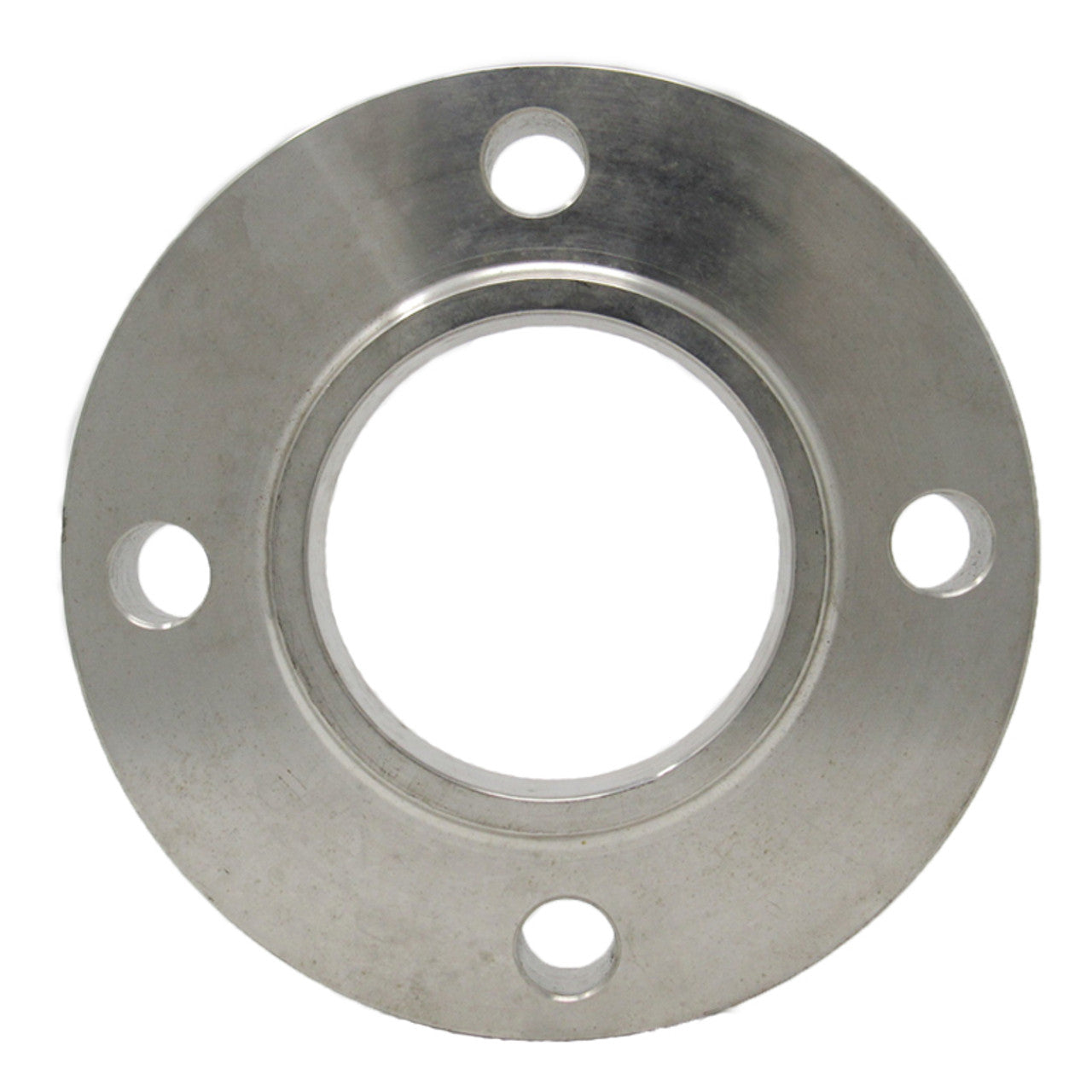

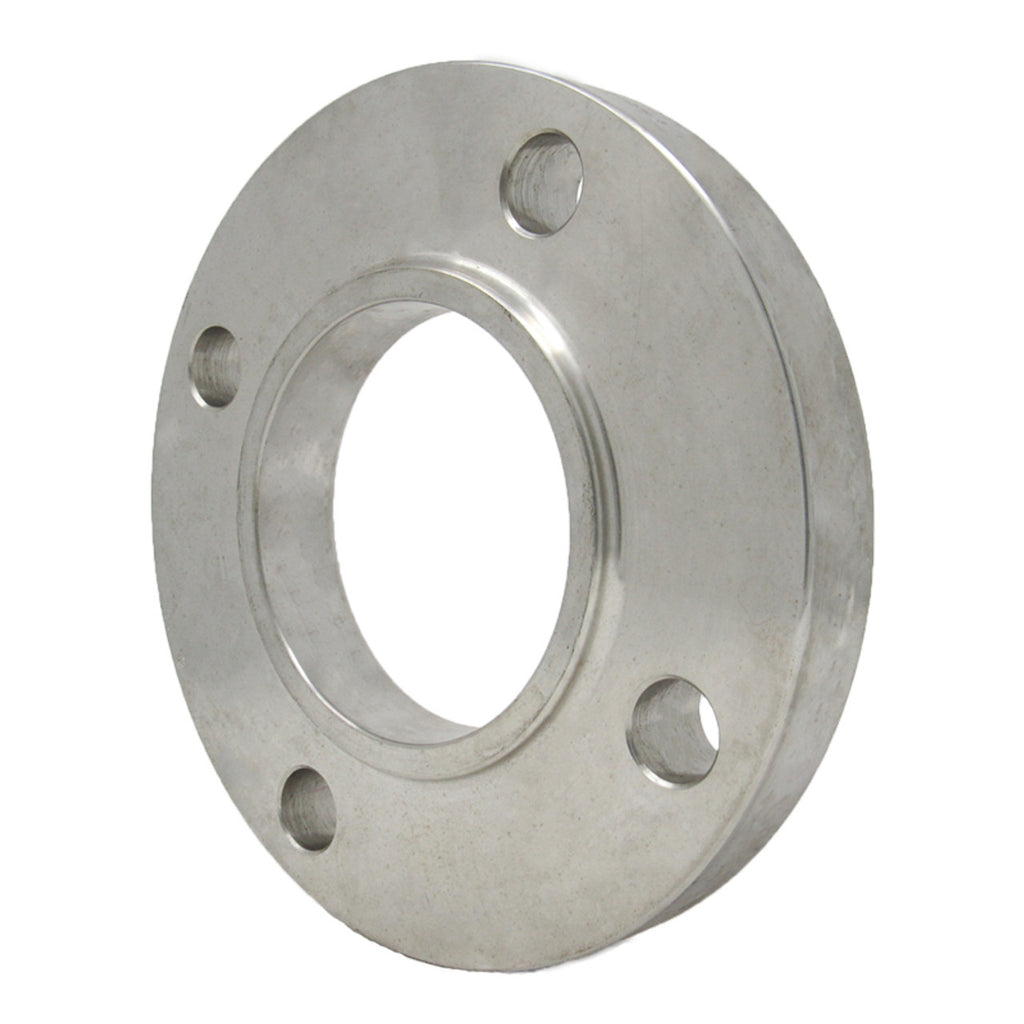

3" Lap Joint Flange, 304/304L Stainless Steel, 150 lb

$100.36
Manufacturer: PipingNow SKU: 60LJ4L030 UPC: 671404103804
✔ Usually ships in 24 hours
Free Shipping on $249+
Ready to Order?
Price:
$100.36
$100.36
Free Shipping
on $249+
Free Returns
within 30 days
Request 30-day payment terms today!
Apply for Net 30 and enjoy exclusive benefits - no fees, no interest, fast approval.
Apply for Terms
Have questions? Call our sales team at 833-290-3800

PDP Tabs

3" Lap Joint Flange, 150#, 304/304L Stainless Steel

Features:

  • Bolt Circle: 6"
  • Number of Bolt Holes: 4
  • Diameter of Bolts: 5/8"
  • Inside Dia: 3.6"
  • Thickness: 0.94"
  • Outside Dia: 7-1/2"
  • Hub Dia: 4-1/4"
  • Length Through Hub: 1.19"
  • 304/304L Stainless Steel
Standards/Approvals:
  • ANSI B16.5
  • ASME SA182
  • ASTM A182

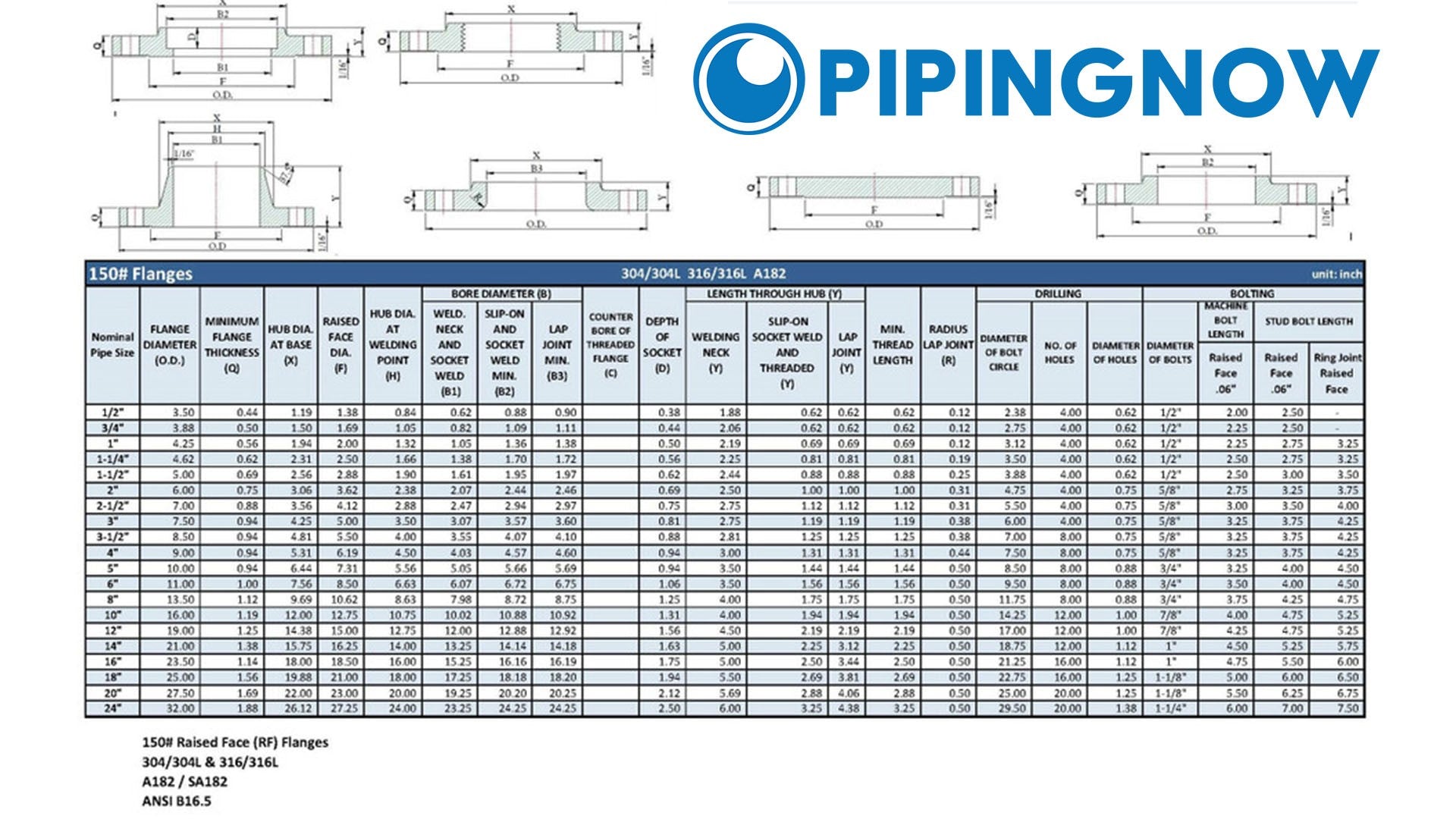

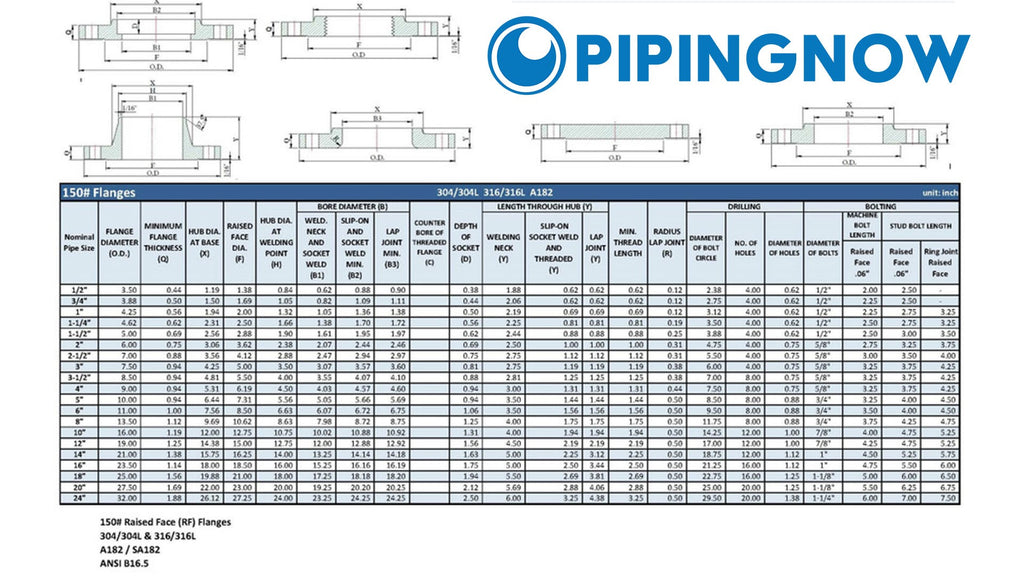

Product Dimensions & Weights can be found on our Downloads page.

UPC: 671404103804

  • Size: 3 in
  • Material: 304L
  • Type: Lap Joint Flange
  • Pressure Class: 150#
  • Category: 150# Flanges - Stainless Steel
