Description

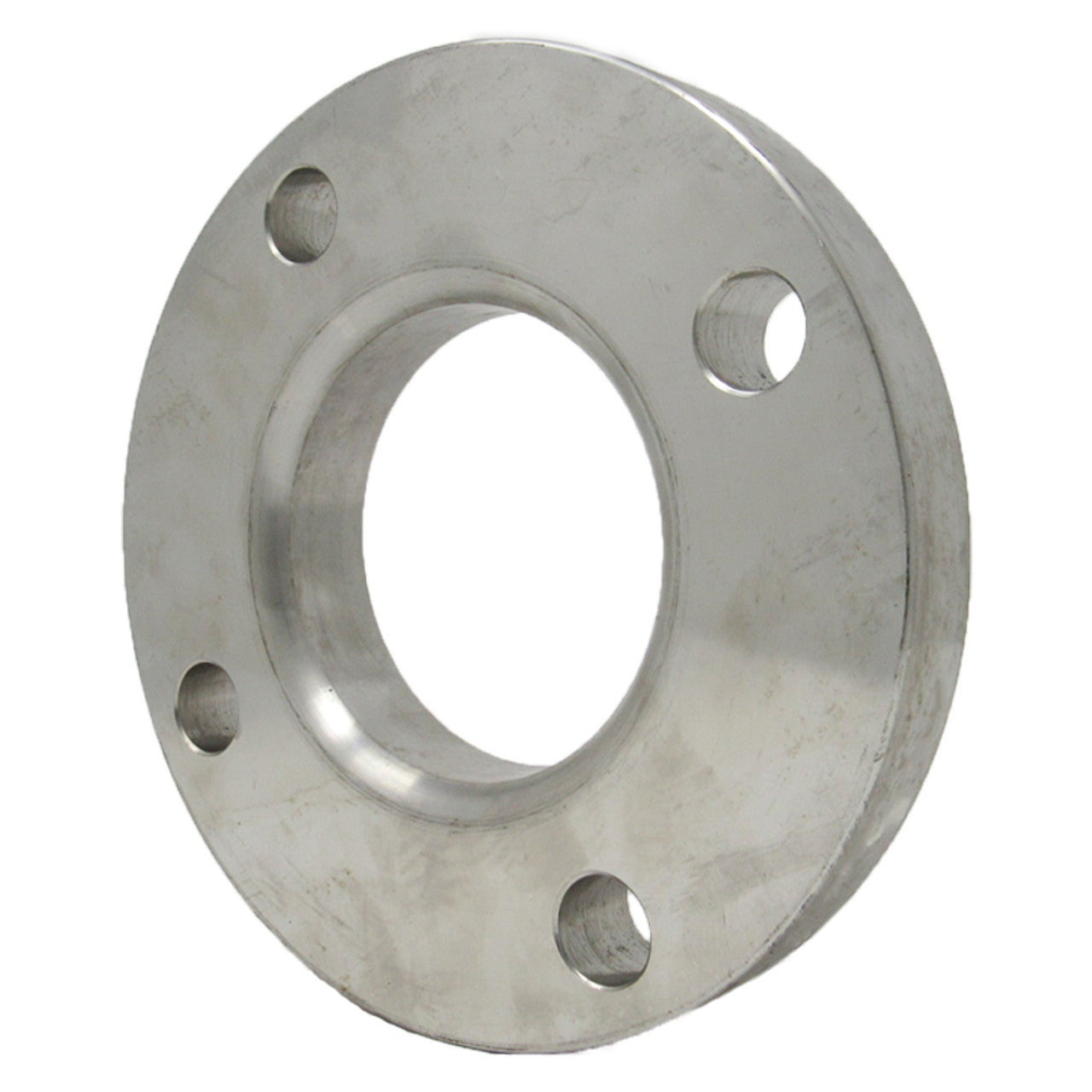

1-1/2" Lap Joint Flange 150# Stainless Steel 304/304L A/SA182
Features:
- Bolt Circle: 3.88"
- Number of Bolt Holes: 4
- Diameter of Bolts: 1/2"
- 1.97 in Inside Dia
- 0.69 in Thickness
- 2.56 in Hub Dia
- 0.88 in Length Through Hub
- 304/304L Stainless Steel
- ANSI B16.5
- ASME SA182
- ASTM A182

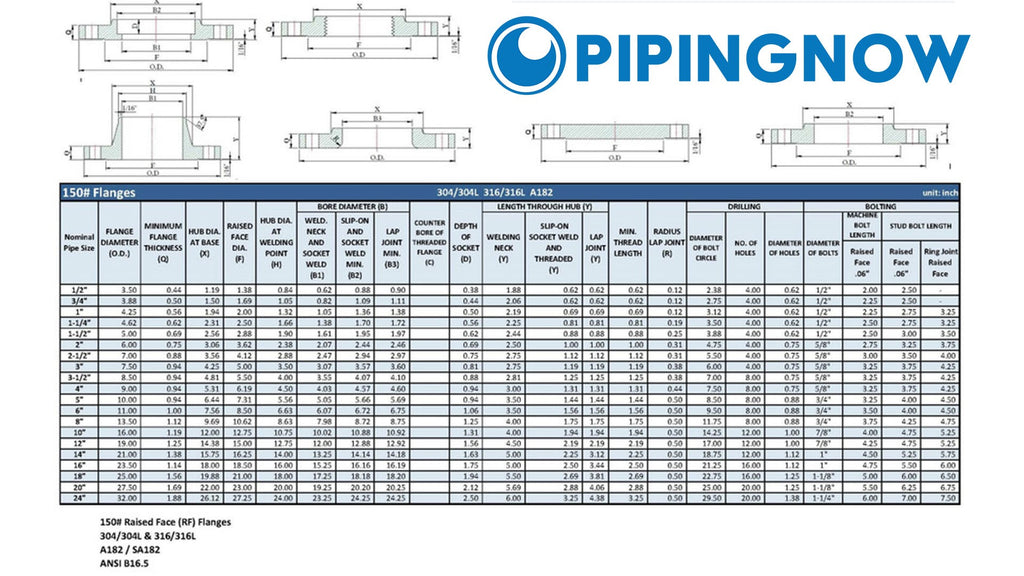

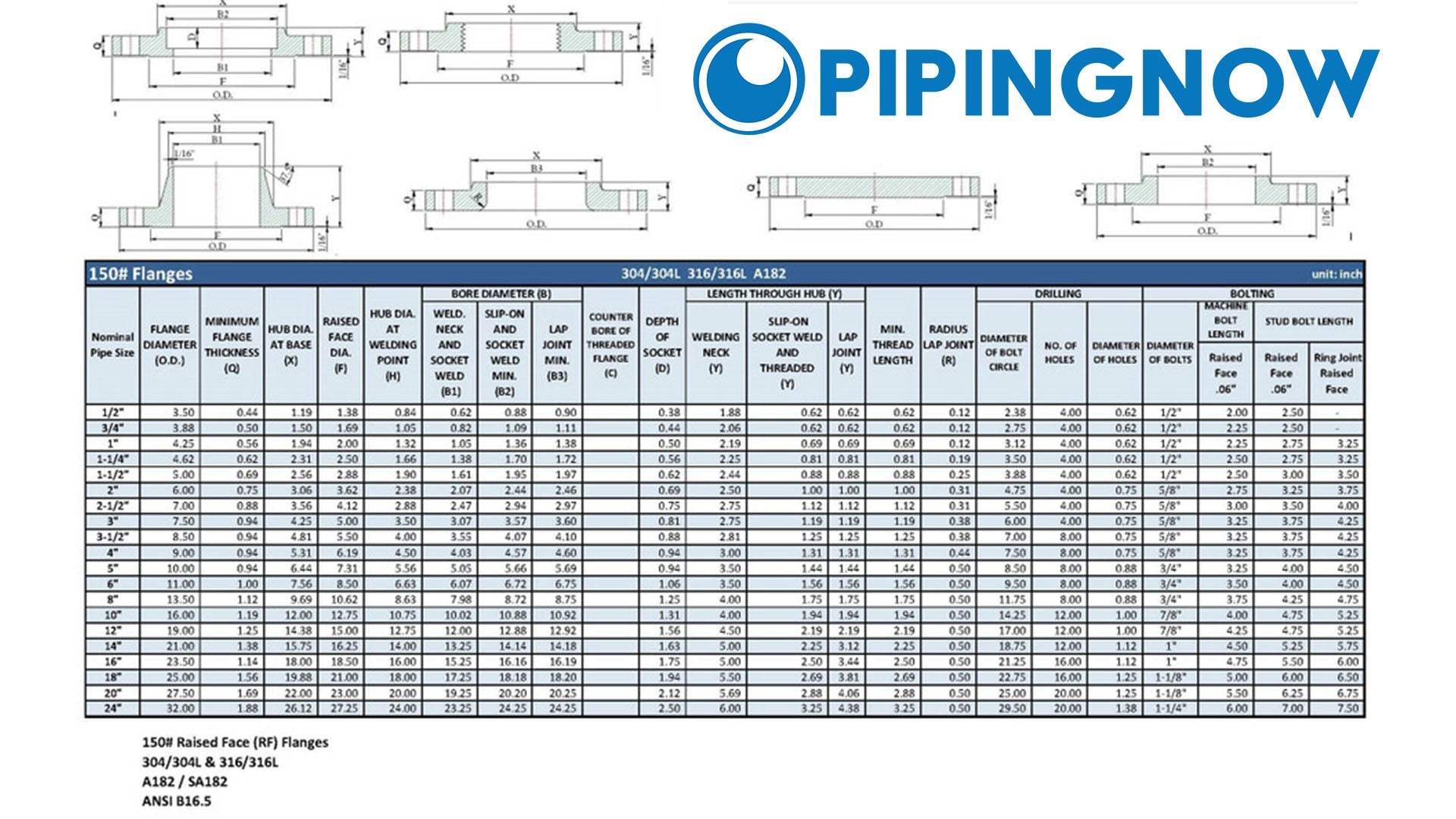

Product Dimensions & Weights of this lap joint pipe flange can be found on our Downloads page.
- Size: 1-1/2 in
- Material: 304L
- Type: Lap Joint Flange
- Pressure Class: 150#
- Category: 150# Flanges - Stainless Steel
