Description

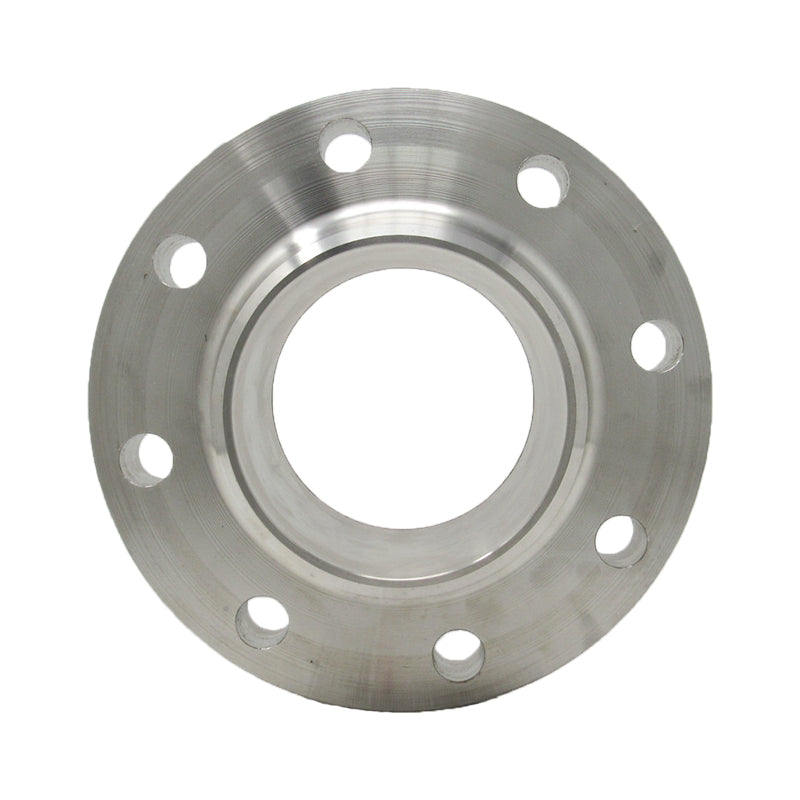

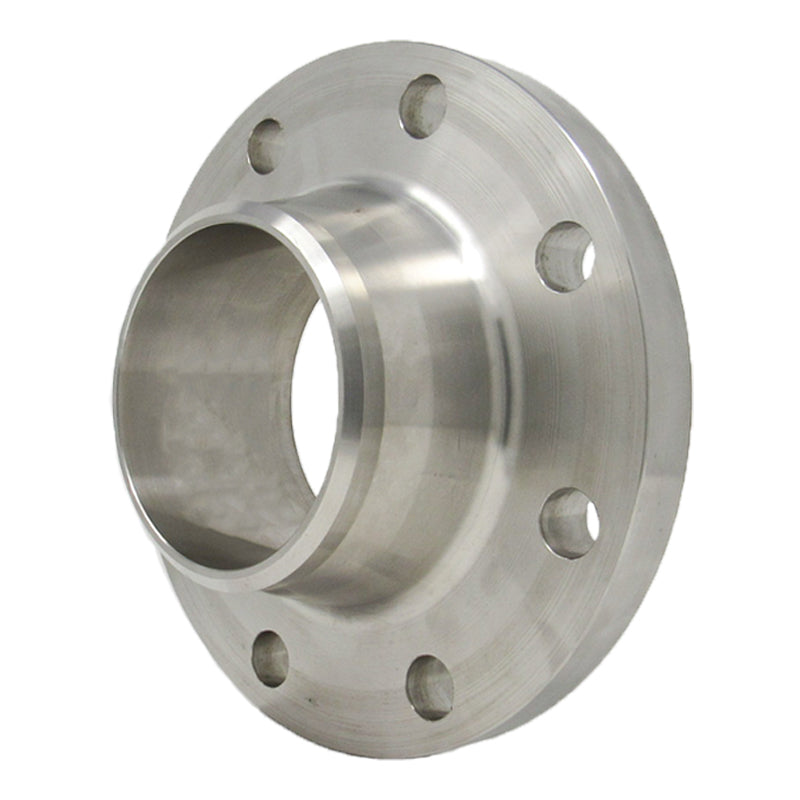

12" Weld Neck Schedule 80s Flange 150# Raised Face (RF) Stainless Steel 304/304L A/SA182

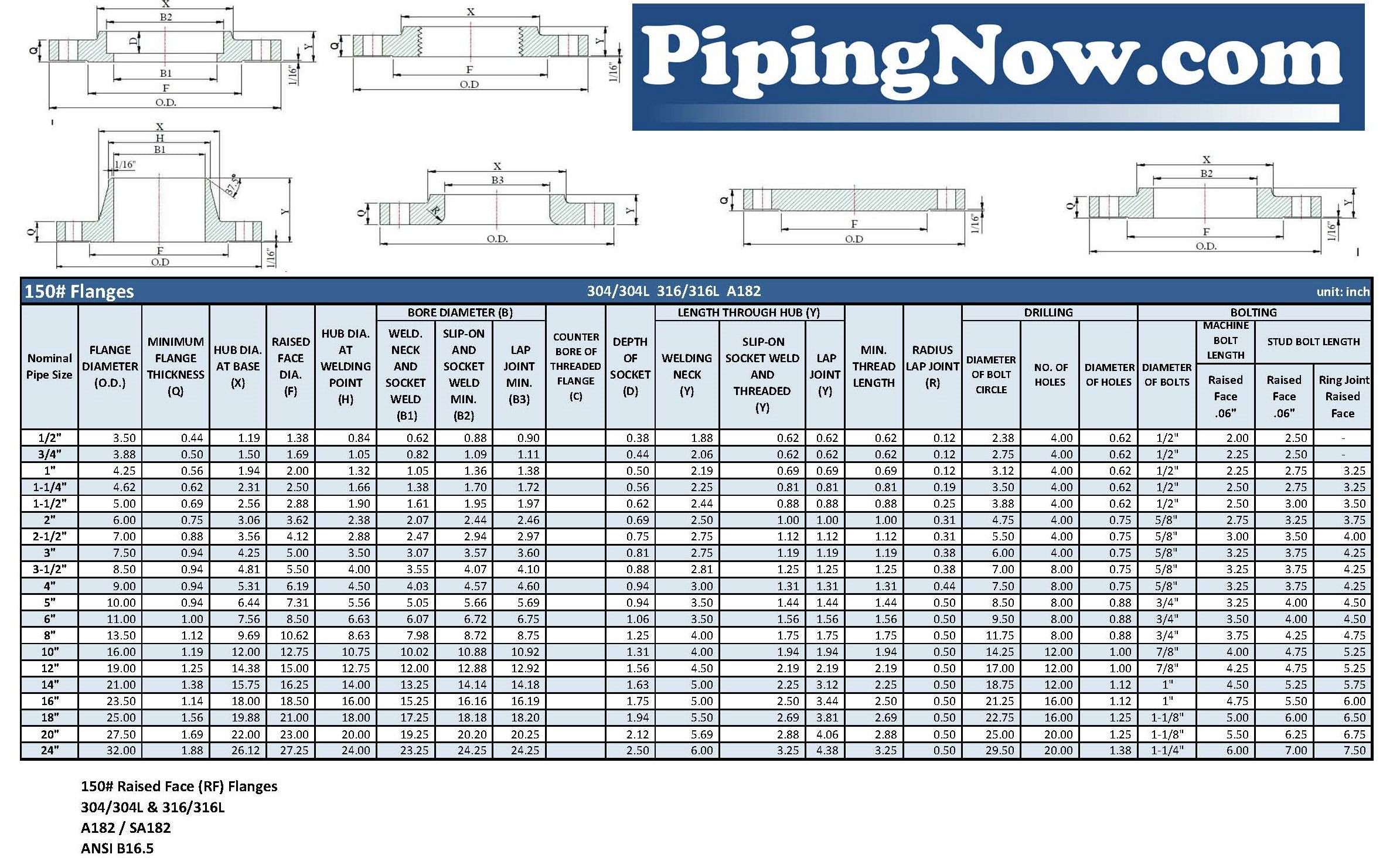

Bolt Circle: 17"Number of Bolt Holes: 12Diameter of Bolts: 7/8"Product Dimensions & Weights can be found on our Downloads page.
- Size: 12 in
- Material: 304L
- Type: Weld Neck
- Pressure Class: 150#
- Schedule Rating: 80s
- Category: 150# Flanges - Stainless Steel
