Description

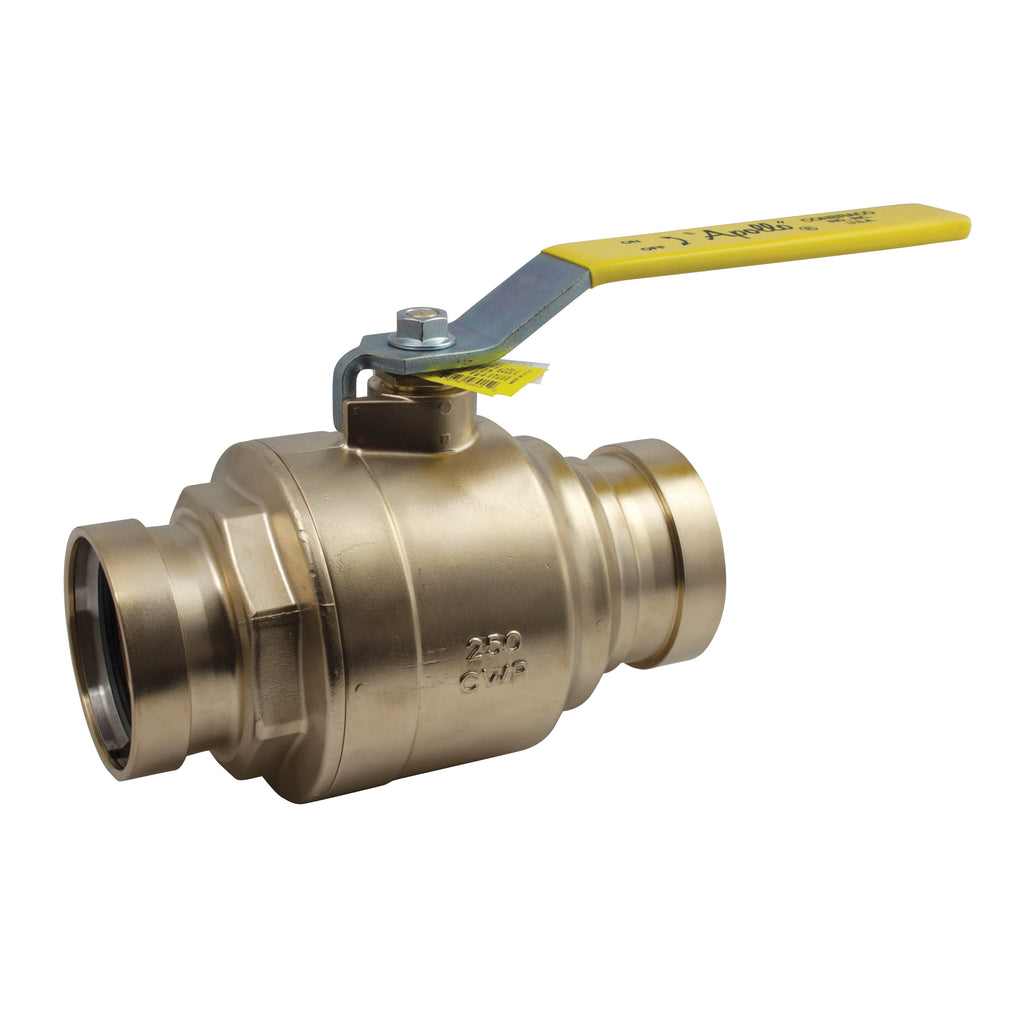

2-Piece Heavy Pattern Ball Valve: 1 in Nominal, Press End Style, Full Port, EPDM Softgoods, Domestic Apollo #77V10501
Standards/Approvals:
- ASTM B16 Ball/Stem
- ASTM B16-C36000 Gland
- ARRA Compliant
- Directive 2002/65/CE Certified to RoHS Compliant
- IAPMO IGC-157
- MSS SP-110
- UNS C37700 Body
- PROP65: Cancer and Reproductive Harm
77V10501
- Size: 1 in
- End Style: Press
- Type: 2-Piece
- Series: 77V
- Temperature Rating: 0 To 250 deg F
- Pressure Rating: 300 psi
- Domestic Import: Domestic
- Inlet To Outlet Length: 3.88 in
- Ball Material: Chrome Plated Brass
- Body Material: Forged Brass
- Trim Material: Forged Brass Stem/RPTFE Seat
- Top To Inlet Center: 2.11 in
- Country Of Origin: US
- Softgoods Material: EPDM
- Manufacturer: Aalberts Integrated Piping Systems
- Actuator Type: Standard Lever
- Port Type: Full
- Category: Ball Valves
