Description

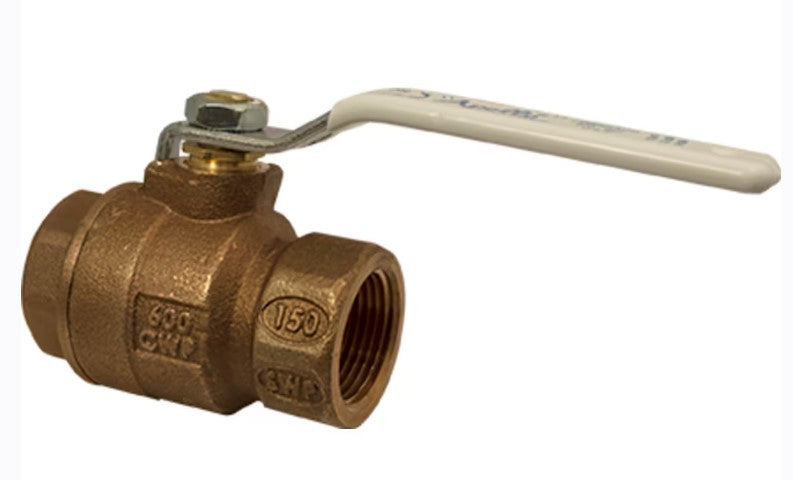

2-Piece Ball Valve: 1 in Nominal, Solder End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic Apollo #77CLF24527A
Standards/Approvals:
- ANSI 3rd Party Approval to 0.25 Percent Lead Max
- ASTM B584-C89836 Lead-Free
- CRN OC10908.5C
- MSS SP-110
- NSF/ANSI 61 Water Quality
- NSF/ANSI 372 Lead-Free
- IAPMO R and T/UPC IGC Z1157
- City of Los Angeles DBS
- PROP65: Cancer and Reproductive Harm
77CLF24527A
- Size: 1 in
- End Style: Solder
- Type: 2-Piece
- Series: 77CLF-A
- Temperature Rating: 450 deg F
- Pressure Rating: 600 psi CWP
- Domestic Import: Domestic
- Inlet To Outlet Length: 2.19 in
- Ball Material: Chrome Plated Brass
- Body Material: Bronze
- Orifice Size: 1 in
- Trim Material: 316 Stainless Steel Stem/RPTFE Seat
- Top To Inlet Center: 2.24 in
- Country Of Origin: US
- Softgoods Material: RPTFE
- Media: Water
- Manufacturer: Aalberts Integrated Piping Systems
- Actuator Type: Lever Operated
- Port Type: Full
- Category: Ball Valves
