Description

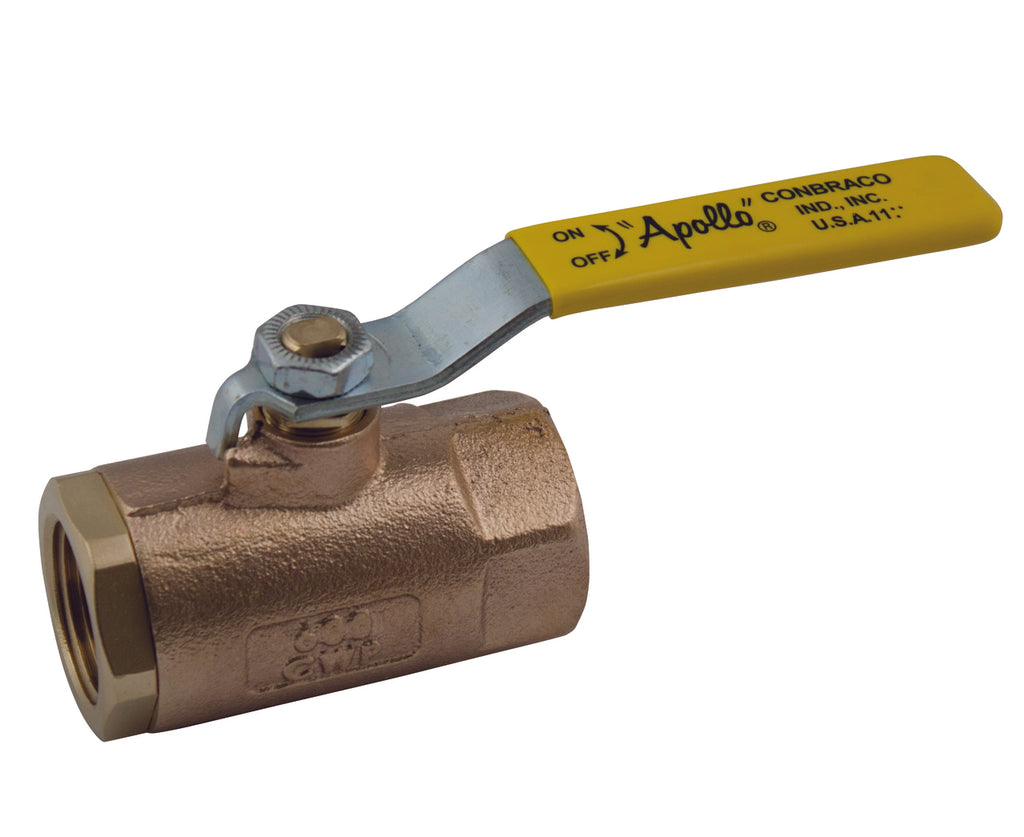

Apollo™, 7010701, Ball Valve, 2-Piece, Series: 70-100, 1-1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Media: Water, Lever Handle Actuator, 4.37 in Inlet to Outlet Length, 3.06 in Top to Inlet Center, Bronze Body, Brass Stem/PTFE Seat Trim, MPTFE/RPTFE Softgoods, Domestic
FEATURES:
- Two-piece body
- Reinforced seats
- Blow-out-proof stem design
- Adjustable stem packing gland
- 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg.
- MSS SP-110 compliant
- B16, chrome plated ball
- Premium materials and heavy duty construction
- 100% factory tested
- Zinc plated with vinyl steel lever and grip
- Zinc plated steel lever nut
- UNS C84400 B584 body
- Made in the USA, 5 year warranty
COMMON OPTIONS:
- 70-140 Series (316ss Ball & Stem)
- 10 SS Lever and Nut
- 14 Side-Vented Ball
- 27 SS Latch-Lock Lever & Nut
- 32 SS Tee handle & Nut
- 41 Automatic Drain
- 47 SS Oval Latch-Lock Handle & Nut
- 48 SS Oval Handle (No latch) & Nut
- 57 Oxygen Cleaned
- 64 250# Steam trim

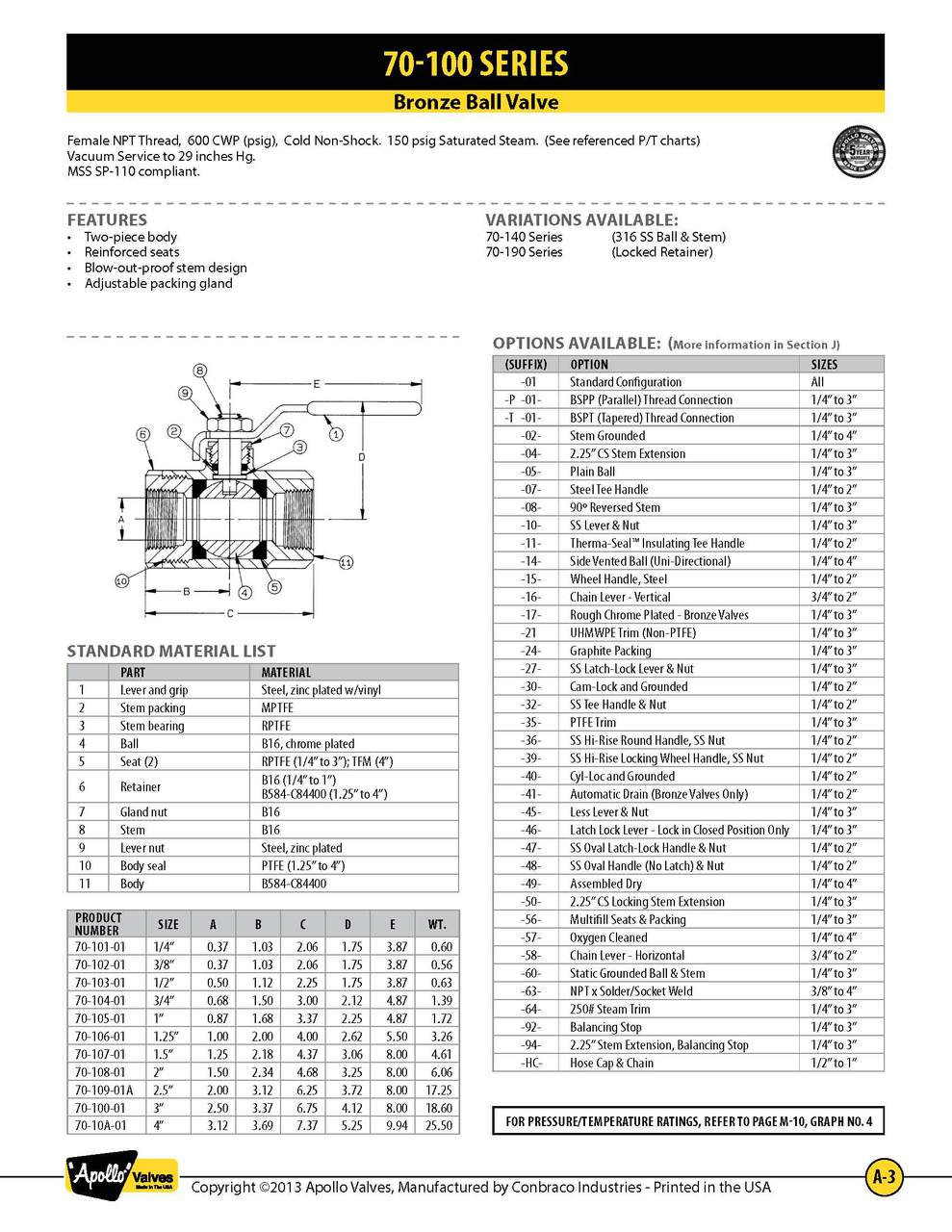

Cut sheets are available on our Downloads page.
7010701
- Size: 1-1/2 in
- Material: Bronze
- End Style: Threaded
- Type: Ball Valve
- Series: 70-100
- Manufacturer: Aalberts Integrated Piping Systems
- Category: Ball Valves
