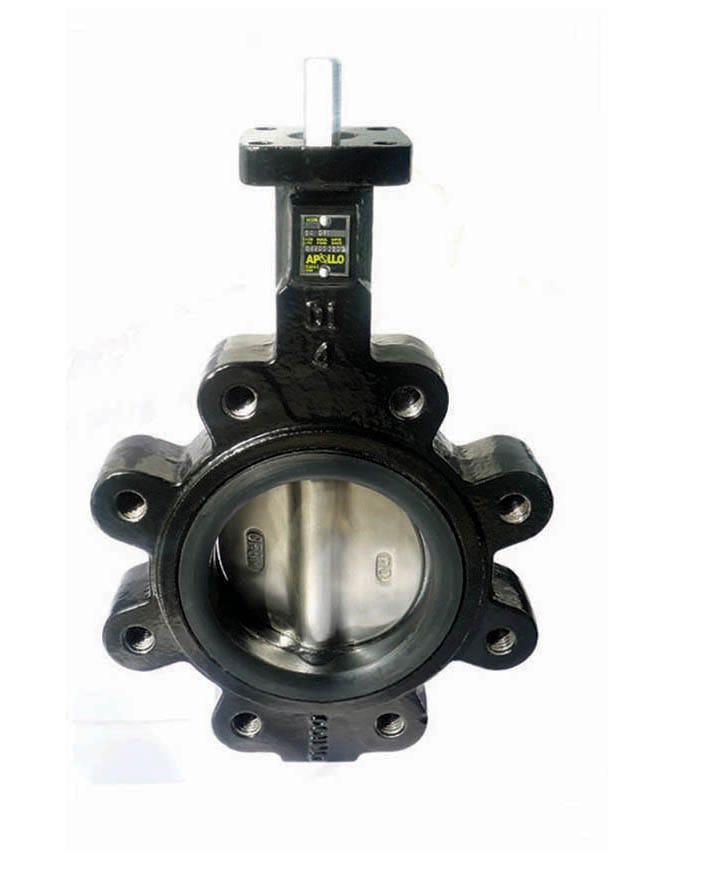

3" Apollo LD141 Series Butterfly Valve Ductile Iron Lug Body with Stainless Disc & BUNA Seat and 10 Position handle
Apollo # LD14103SN11A
The Apollo® LD141/WD141 Series Ductile Iron Butterfly Valves are ideal for use in Industrial and Commercial/HVAC/Mechanical applications. The WD141 Series is a wafer style valve and the LD141 Series is a companion lug style. Available in sizes 2” - 24” lug and 2” - 12” wafer.
FEATURES
• Compatible with ANSI 125# & 150# Flanges
• ISO 5211 Top Plate Allows Choice of Apollo® Pneumatic Actuators and Gear Operators
• Conforms to MSS SP-67 & API 609
• LD141 Series Suitable for End of Line Service (Bidirectional Dead End Service) to Rated Pressure (2”-24”)
• 3” - 24” meet performance requirements of AWWA C-504
PERFORMANCE RATING
• Pressure Rating: 2” to 12”: 200 psi 14” to 24”: 150 psi
APPROVALS
• NSF/ANSI 372 - Lead Free
• NSF/ANSI 61 - Water Quality*
• CRN: OC/2102CL
• MSS SP67-2002a
*applies to bronze and stainless steel disc models
