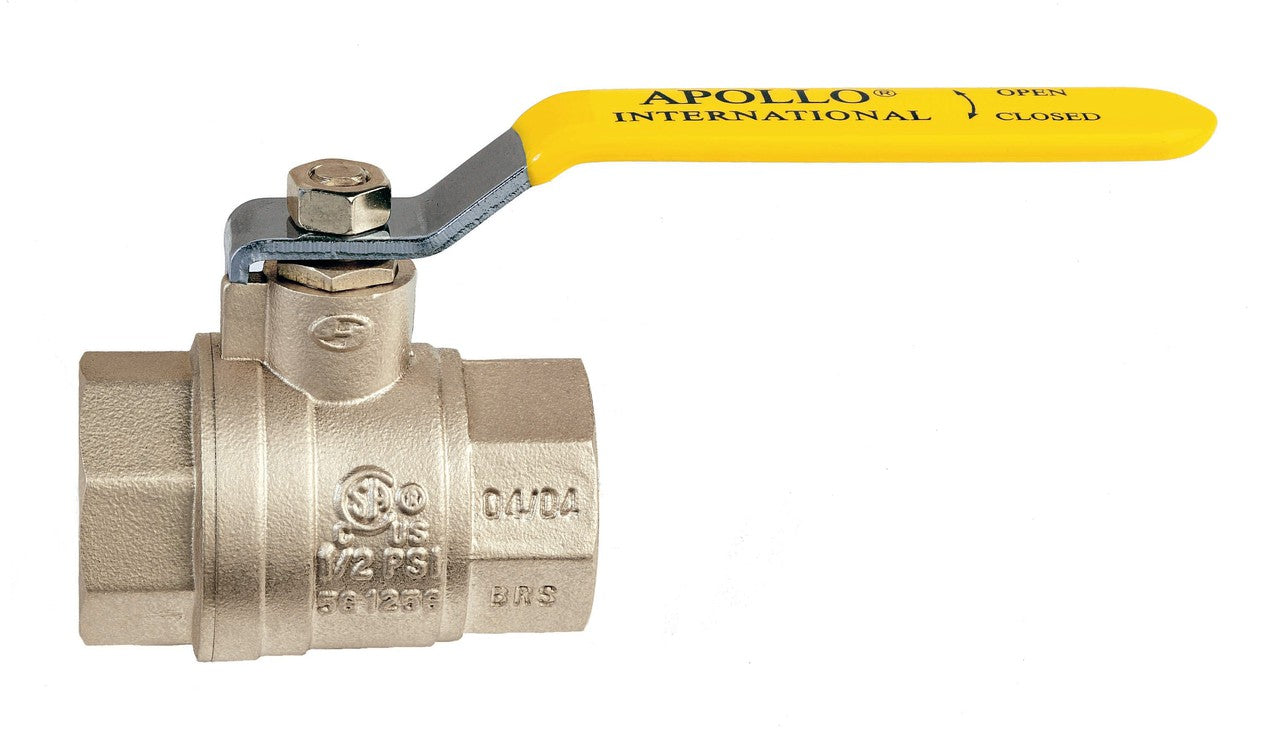

1/4" Apollo 94A-101-01 Ball Valve Threaded Ends, Full Port Brass Forged

1/4" Apollo 94A-101-01 Ball Valve Threaded Ends, 600# CWP, Full Port Brass Forged PTFE Seats and Packing

FEATURES

• 2-Piece, Full Port Design
• Blowout-Proof Stem
• Adjustable Stem Packing Nut
• 100% Factory Tested
• Stem Seal O-Ring (Solder Version 1/2” - 2”)

PERFORMANCE RATING

• 600 CWP – 1/4” to 2”
• 400 CWP – 2-1/2” to 4”
• Temperature Range: 0°F to 400°F

APPROVALS

• CSA: ¼”-4” NPT per ANSI Z21.15/ CGA 9.1 (1/2 psi) / CGA 3.16 (125 psi) ¼”-4” NPT per ASME B16.44 (5 psi) ½”-2” NPT per ASME B16.33 (125 psi) 2 ½”-4” NPT per ASME B16.38 (125 psi)
• UL: Guides YQNZ, YRBX, YRPV, YSDT and MHKZ (1/4” - 4” NPT only)
• UL 258 – VQGU Trim & Drain 175# max (1/4” – 2”)
• FM: ¼”-2” per FM1140 (<175 psi)
• MSS SP-11O: Ball Valves

Note: Gas approvals apply to NPT valves only.

*Not for use in potable water applications in the United States

Cut sheets are available on our Downloads page.

94A10101
