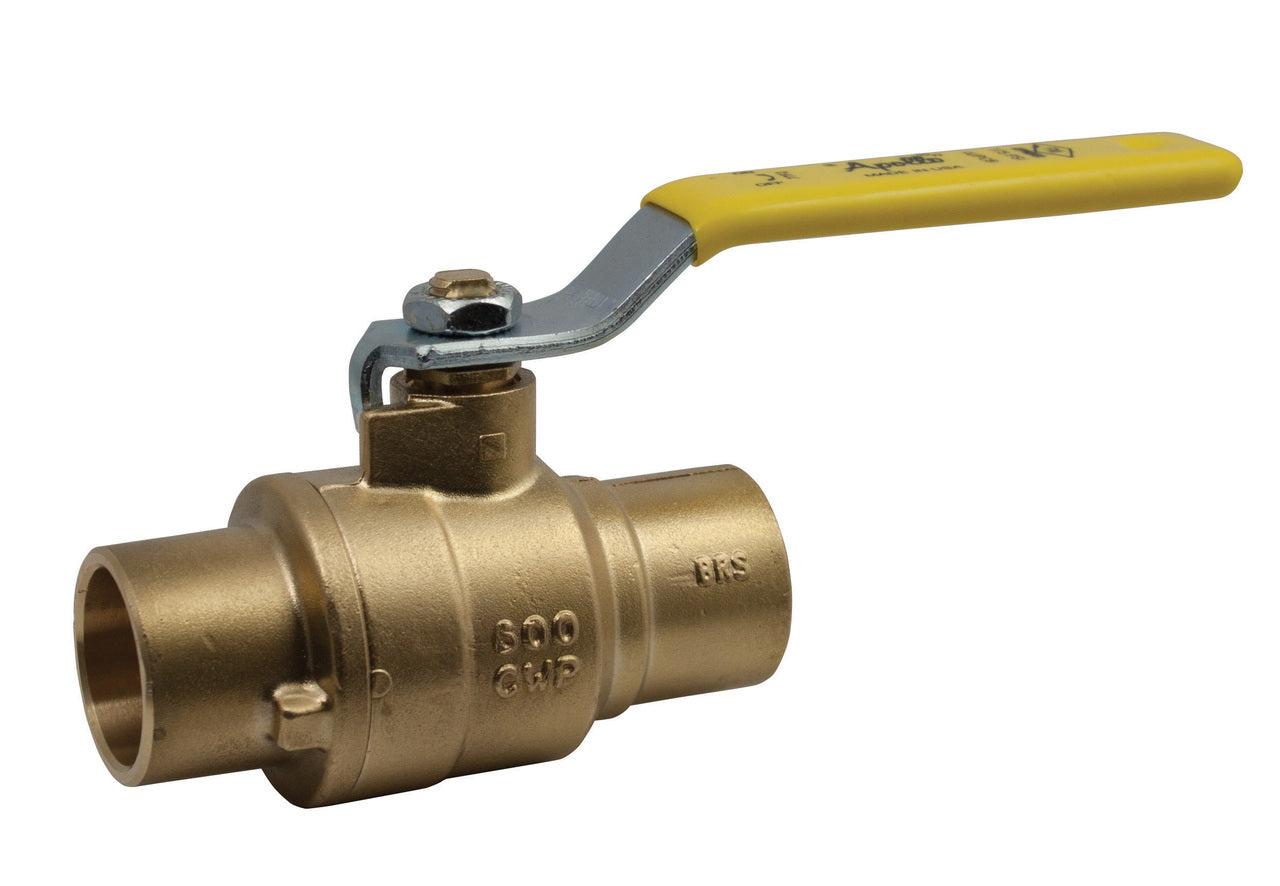

1/2" Apollo 77F-203-01 Ball Valve Solder Ends, 600# CWP, Full Port Brass Forged RPTFE Seats and Packing
FEATURES
- Heavy Pattern Forged Design
- Corrosion Resistant Materials
- Full-Port Flow
- Premium RPTFE Seats and Packing
- Adjustable Stem Packing
- Blowout Proof Stem
- Silicone Free Assembly
- 100% Factory Tested
- Made in USA, ARRA Compliant
PERFORMANCE RATING
- Rating: 600 CWP (1/4” – 2”)
- Rating: 400 CWP (2-1/2” – 4”)
- Steam Rating: 150 psi SWP
- Temperature Range: 0°F - 400°F
- Vacuum Service to 29 in. Hg
APPROVALS
- MSS-SP-110
- IAPMO IGC-157 Ball Valves
- CGA 3.16 (125 PSI)
- CGA CR91-002 (5 PSI)
- ANSI Z21.15/CSA 9.1 (1/2 PSI)
- ASME B16.44 (5 PSI)
- ASME B16.33 (125 PSI) (1/2” – 2”)
- FM 1140 (1/4” – 2”)UL Guides: YSDT, MHKZ, YQNZ, YRBX & YRPV
- UL Guide VQGU (1/4” – 2”)
Not intended for potable water in USA
UL, CSA,FM Approved
5 Year Warranty
Cut sheets are available on our Downloads page.
77F20301
