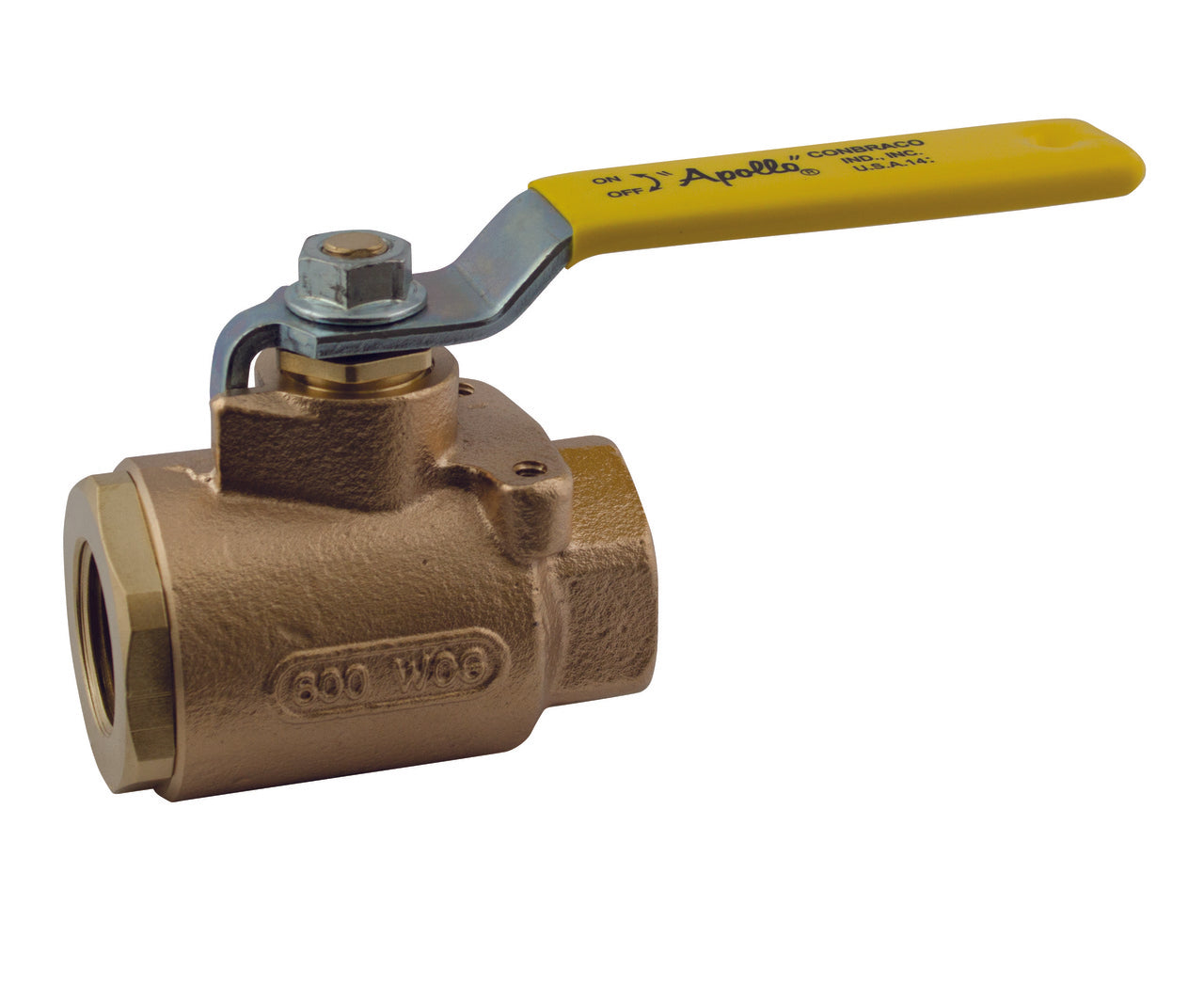

1" Ball Valve 600# Bronze Threaded Ends : Full Port: Mounting Pads Apollo #77-105-01
FEATURES
- Adjustable Packing
- Blowout-Proof Stem Design
- RPTFE Seats and Stuffing Box Ring
- Hardened Ball for Wear Resistance
- 100% Factory Tested
- Mounting Pad for Easy Actuator Mounting
- Made in USA, ARRA Compliant
PERFORMANCE RATING
- Maximum Pressures: CWP: 600 psi SWP: 150 psi
- Maximum Temperature: 500°F
- Vacuum Service to 29 in. Hg
MODELS
- 77-100 Series – Standard
- 77-140 Series – 316 SS Ball & Stem
- 77-150 Series – Balancing Stop
- 77-190 Series – Locked Retainer
APPROVALS
- MSS SP-110; Ball Valves, Threaded, SocketWelding, Solder Joint, Grooved and Flared Ends
- Federal Specification: WW-V-35C, Type: II, Composition: BZ, Style: 3
- CRN: OC10908.5C
Cut sheets are available on our Downloads page.
7710501
