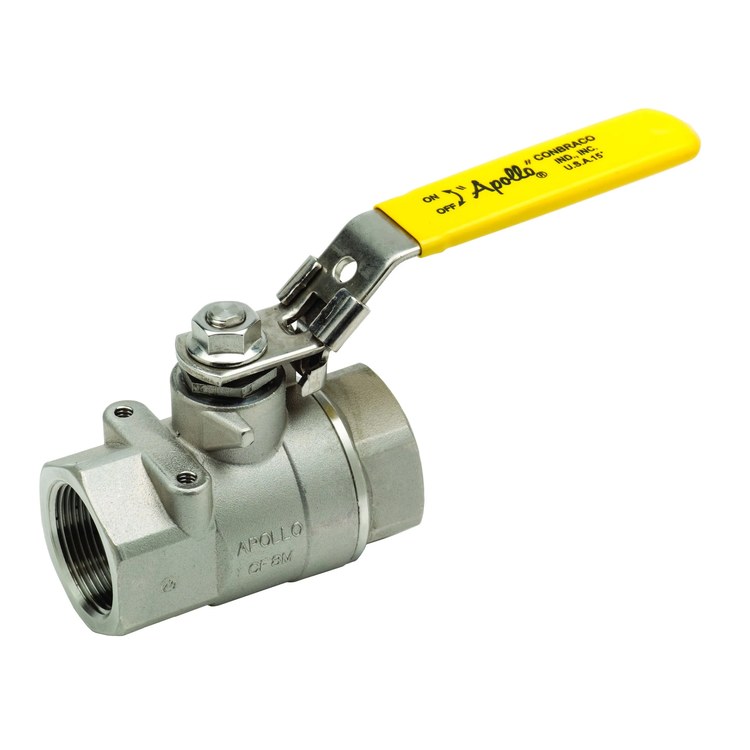

1-1/2" Ball Valve 1500# Stainless Steel CF8M Threaded Ends with Stainless Locking Handle and Mounting Pad Apollo #76-107-27 - Female NPT Thread, 2000 CWP (psig). Cold Non-Shock. (See referenced P/T chart) 150 psig Saturated Steam
- Vacuum Service to 29 inches Hg
- MSS SP-110 compliant.
- CERTIFIED LEAD-FREE
FEATURES
- Investment cast components
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blowout-proof stem design
- Adjustable packing gland
- Stainless steel lever and nut
- Fire safe to API 607 (requires -24 suffix)
- Meets NACE MR0175 (2000) & MR0103 (2012)
- CSA CGA 3.16-M88 (Requires “GS” suffix)
- NSF/ANSI 61 Section 8, Annex G
- NSF-372, Drinking Water System Components - Lead Content
Made in the USA
5 Year Warranty
Cut sheets are available on our Downloads page.
7610701
