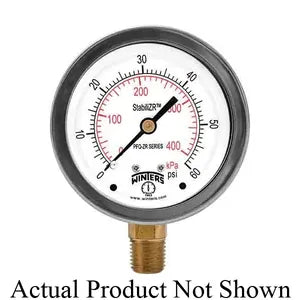

Stainless Steel StabiliZR Gauge, Dual Scale, 1/4" NPT Bottom, 2.5" Dial, 30" Hg VAC to 300 psi/kPa
- Dial: Aluminum with red and black markings
- Case: 304 SS (dry)
- Lens: Polycarbonate
- Ring: 304 SS (crimped on)
- Socket: Brass with restricted orifi ce (dual scale only)
- Bourdon Tube: Bronze
- Movement: Brass with StabiliZRTM dampened movement (silicone in sealed chamber)
- Pointer: Anodized black aluminum
- Over-pressure Limit: 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)
- Socket Gasket: Buna N for two-piece internal socket seal
- Fill Plug: Buna N
- Lens Ring Gasket: Silicone rubber
- Working Pressure: 75% of full scale value
- Ambient Temperature: -76°F (-60°C)
- Process Temperature: -40°F to 200°F (-40°C to 93°C)
- Accuracy: ±1.5% of full scale value
- Enclosure Rating: IP65
