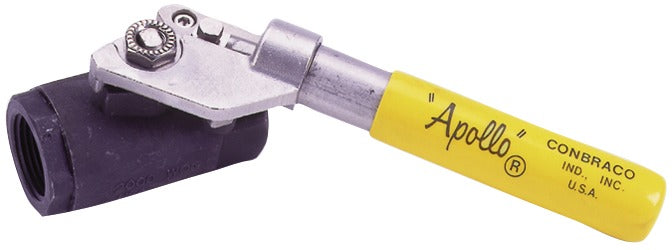

2" Apollo 89-508-01 Ball Valve Threaded Ends, Carbon Steel with Spring Return Handle

2" Apollo 89-508-01 Ball Valve with Deadman Spring Return Handle Threaded Ends, 1500# CWP, Carbon Steel Multifill PTFE Seats and Packing

Female NPT Thread, 1/4”to 1” 2000 CWP (psig)

1.25” to 2” 1500 CWP (psig). Cold Non-Shock. 150 psig Saturated Steam

Vacuum Service to 29 inches Hg. MSS SP-110 compliant.

FEATURES

• Spring return to close (“01” suffix)
• All components of lever are stainless steel
• Zinc phosphate corrosion protection
• Operating torque is approximately three times standard valve torque
• Blowout-proof stem design
• Adjustable packing gland
• Investment cast components
• Multifill seats

VARIATIONS AVAILABLE

• 89-540 Series (316 SS Ball & Stem
• Spring return to open (“08” suffix)
• Fire safe “by design” (requires -24 suffix)

Made in the USA

5 Year Warranty

Cut sheets are available on our Downloads page.

8950801
