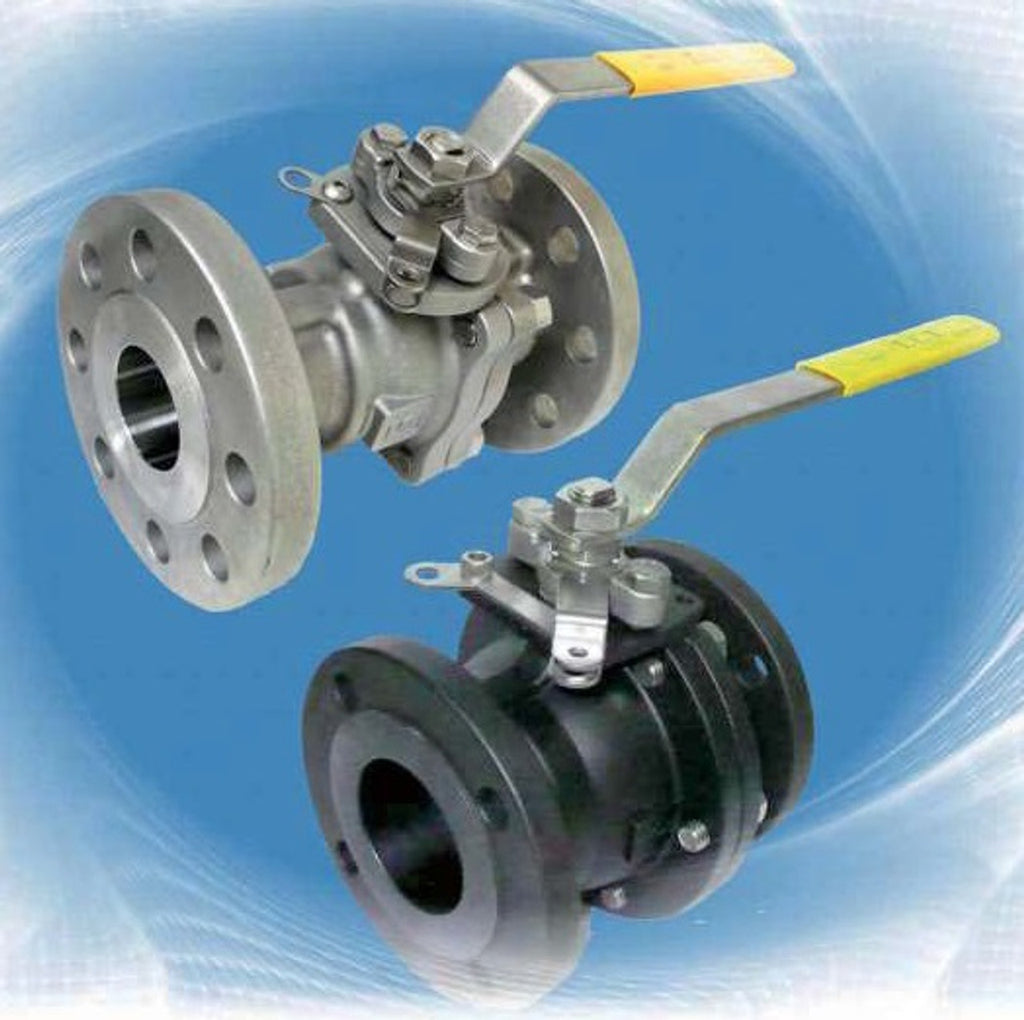

8" Ball Valve, 300# Flanged Stainless Steel 316 Body with SS Ball & Stem Full Port 2-Piece Gear Operator TCI #TC-5300FS
- API 607 4th Edition FIRE SAFE APPROVAL
- ABS Type Approved
- USCG 56.20-15 Positive Shut-Off Tested
- Steam rating: 150psi WSP
- NACE MR-0175 full compliance
- ISO 5211 Actuator Mounting Pad
- Blow-out-proof stem design
- Anti-Static Device
- Body: ASTM A351 Gr. CF8M
- Ball: ASTM A351 Gr. CF8M
- Stem: ASTM A276 316
- Molecularly Enhanced PTFE Seals
- Temperature Rating: -50 to 475F
- Face to Face: ANSI B16.5
- Test Standard: API 598
Cut sheets are available on our Downloads page.
