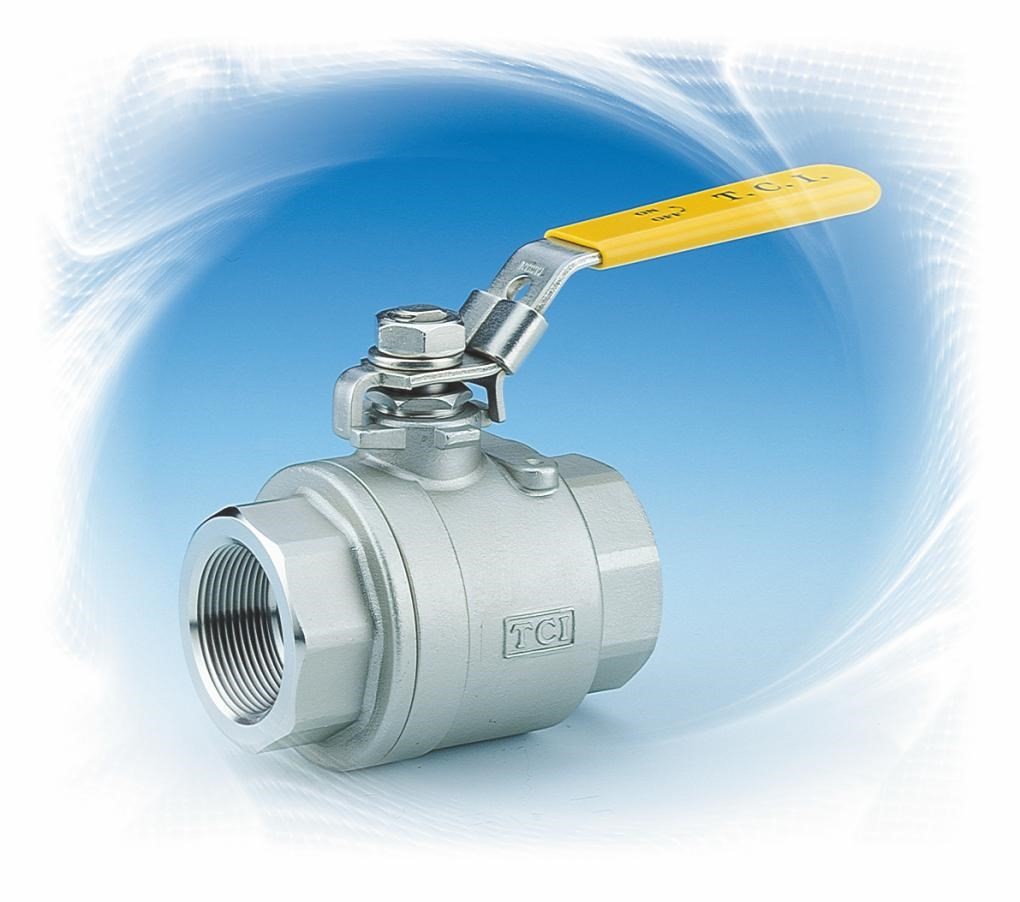

1/4" Ball Valve 2000# 316 2-Piece Full Port NPT Threaded ME-PTFE TCI TC-2000
TCI #TC-2000
- Steam Rating: 150 psi WSP
-
Working Pressure:
- 1/4"~1" 2000 PSI
- 1 1/4"~2" 1500 PSI
- Investment Casting Body & Cap
-
ME-PTFE Seal Kits:
- Replaces PTFE, RPTFE, and P FPA
- Low Deformation Under Load
- Low Permeation
- Temperature Rating: -45.5°C (-50°F) to 246°C (475°F)
- Long Cycle Life
- Adjustable Stem Packing
- Blow-Out Proof Stem
- Locking Device
- Design Specification: ANSI B16.34 Class 900
- Test Standard: API 598
- Vacuum Service to 29" Hg
- NACE MR-0175 Full Compliance
- MSS SP-110 Compliant
Valve Submittal Sheet
