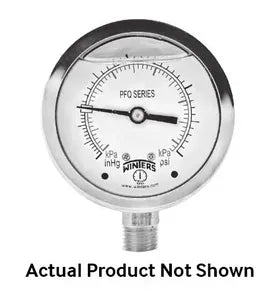

Stainless Steel Liquid Filled Gauge, Single Scale, 1/4" NPT Bottom, 2.5" Dial, 30" Hg VAC to 300 psi
- Dial: White aluminum with black and red markings
- Case: AISI 304 SS
- Lens: Polycarbonate
- Ring: AISI 304 SS, Crimp-On
- Socket: AISI 316 SS with restrictor screw (dual scale only)
- Bourdon Tube: AISI 316 SS C or coil shaped
- Movement: SS
- Pointer: Aluminum, anodized black
- Welding: TIG
- Over-pressure Limit: 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)
- Socket Gasket: Welded socket
- Fill Plug: Buna N
- Lens Ring Gasket: Silicone rubber
- Working Pressure: Maximum 75% of full scale value
- Ambient/Process Temperature: Dry: -40°F to 200°F (-40°C to 93°C) Glycerin Filled: -4°F to 150°F (-20°C to 65°C)
- Accuracy: ±1.5% of full scale value
- Enclosure Rating: IP65
