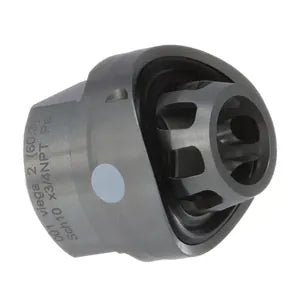

The MegaPress® Press-in Branch Connector is designed for SCH 10 and SCH 40/STD carbon steel pipes. The press-in branch connector creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. It is particularly suitable where space is at a premium, e.g. in pipe manifold installation for sensors, thermometers or drains. A separate press-in branch connector is available for the different pipe dimensions. The press-in branch connector is fitted with a sealing element made of EPDM or FKM. The press-in branch connectors are marked with a green dot for EPDM and a white dot for FKM. The Viega MegaPress® Press-in Branch Connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work. The press fittings are installed with a battery-powered or corded pressing tool.
- Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 in to 2 in and a PBT separator ring for sizes 2-1/2 in to 4 in fittings
- Approved for more applications than any other carbon steel pipe press fitting system
- Suitable for use with ASTM SCH 5 to SCH 40/STD carbon steel pipe (can be used on higher schedule pipe, but limited to maximum pressure listed)
- Corrosion-resistant zinc nickel coating
- Over 180 engineered fitting configurations from 1/2 in to 4 in
- Approved for underground applications, in accordance with code and local AHJ
- The same hanger and support requirements as threaded systems
- Viega Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
- Not approved for use with SCH 10, 1/2 in to 1 in pipe where UMC codes apply
