3/4 ball valves are one of the most versatile and widely used flow control components in plumbing, industrial systems, and irrigation. Known for its durability, ease of use, and reliable sealing, this valve size is ideal for medium-flow applications where precision and efficiency are crucial. Whether you are a homeowner installing a new water line or a technician managing complex piping systems, understanding the design, functionality, and benefits of a 3/4 ball valve can help you make better purchasing and installation decisions.
Introduction – Why the 3/4 Ball Valve Is a Popular Choice
The 3/4 ball valve is popular because it strikes the perfect balance between flow capacity and ease of control. Its size is large enough to allow significant water or gas flow but compact enough to fit in tight spaces. With a simple quarter-turn handle, it can fully open or close the flow path, making it both user-friendly and highly efficient. This versatility makes it suitable for applications ranging from residential plumbing repairs to heavy-duty industrial systems.
What Is a 3/4 Ball Valve?
How a Ball Valve Works
A ball valve uses a spherical closure unit with a hole (or port) through the center. When the handle is turned 90 degrees, the port aligns with the flow path, allowing fluid or gas to pass through. Turning it again blocks the passage completely. This simple mechanism provides quick shut-off, minimal pressure drop, and excellent sealing performance.
Specific Dimensions and Flow Capacity of a 3/4 Ball Valve
A standard 3/4 ball valve has a nominal bore of approximately 0.75 inches, allowing for substantial flow rates without excessive pressure loss. Depending on the port design, it can handle flow capacities ranging from 20 to over 40 gallons per minute (GPM), making it suitable for mid-range systems in residential, commercial, and light industrial applications.

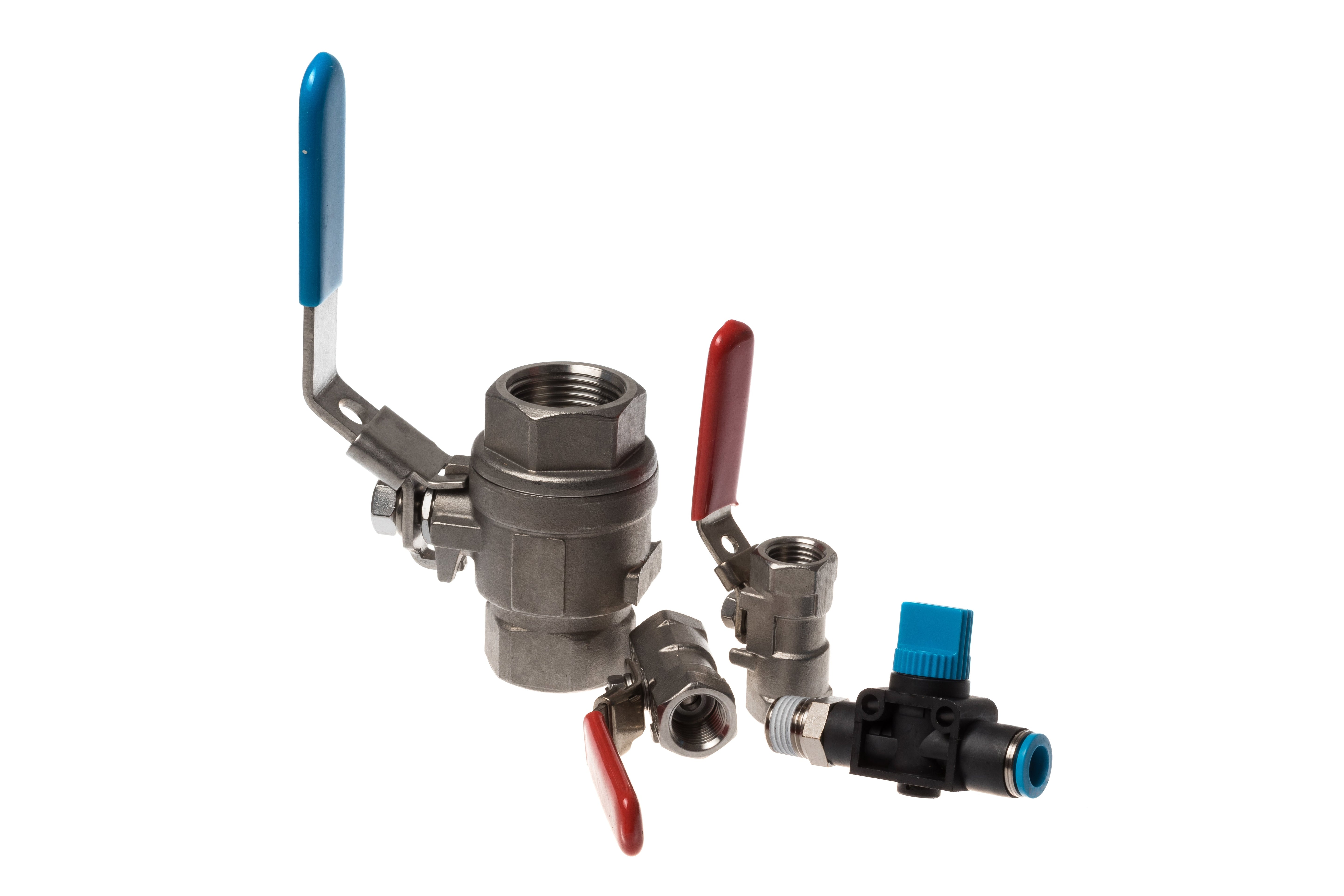

Types of 3/4 Ball Valves
Brass 3/4 Ball Valves
Brass ball valves are widely used due to their corrosion resistance, affordability, and durability. They perform well in both hot and cold water systems and are commonly found in home plumbing, irrigation, and low-pressure industrial applications.
Stainless Steel 3/4 Ball Valves
Stainless steel offers superior corrosion resistance, especially in harsh environments such as chemical processing, marine applications, and high-pressure systems. These valves are ideal for industries where hygiene, strength, and chemical resistance are critical.
PVC 3/4 Ball Valves
PVC ball valves are lightweight, cost-effective, and resistant to many chemicals, making them a top choice for irrigation, aquariums, and water filtration systems. They are best suited for low to medium pressure and temperature applications.
Full Port vs. Standard Port Ball Valves
-
Full Port (Full Bore): The internal bore matches the pipe diameter, minimizing flow restriction and pressure drop. Ideal for systems needing maximum flow efficiency.
-
Standard Port: Slightly smaller bore than the pipe, leading to minor flow restrictions but usually at a lower cost.
Common Applications of 3/4 Ball Valves
Residential Plumbing
In homes, 3/4 ball valves are used for water main shut-offs, hot water heater connections, and outdoor spigots. Their quick-turn operation makes them perfect for emergency water shut-off situations.
Industrial Systems
Industries use these valves in chemical plants, manufacturing facilities, and food processing lines for controlling liquids, gases, and steam.
Irrigation and Agriculture
Farmers and landscapers rely on 3/4 ball valves for controlling water distribution in irrigation systems, ensuring efficient watering schedules for crops and gardens.
HVAC and Water Filtration
These valves play a role in heating, ventilation, and air conditioning systems, as well as in water purification setups where precise flow control is necessary.
How to Choose the Right 3/4 Ball Valve
Material Selection Based on Use
-
Brass: General plumbing and heating.
Stainless Steel: Corrosive, high-pressure, or hygienic environments. -
PVC: Chemical resistance and light-duty water control.
Pressure and Temperature Ratings
Always check the manufacturer’s specifications. Brass valves typically handle up to 600 PSI, stainless steel even higher, while PVC handles lower pressures and temperatures.
Connection Types (Threaded, Soldered, Flanged)
-
Threaded: Easy to install and remove; common in residential use.
-
Soldered: Permanent, leak-proof joints for copper piping.
-
Flanged: Used in larger industrial systems for secure, serviceable connections.
Installation Tips for a 3/4 Ball Valve
Tools Needed
-
Adjustable wrench or pipe wrench
-
PTFE thread seal tape (for threaded connections)
-
Soldering kit (for copper pipes)
-
Safety gear (gloves, eye protection)
Step-by-Step Installation Guide
-
Shut off the system and relieve pressure before working.
-
Prepare the pipe ends by cleaning and deburring.
-
Apply thread seal tape or flux, depending on connection type.
-
Install the valve in the correct flow direction if marked.
-
Tighten connections without over-torquing.
-
Test for leaks by gradually turning on the system.
Common Mistakes to Avoid
-
Over-tightening threaded joints, which can damage threads.
-
Installing the valve backward (if directional).
-
Forgetting to flush debris before operation.
Maintenance and Troubleshooting
How to Prevent Leaks
Regularly check for signs of wear around seals and packing nuts. Tightening the stem packing slightly can often stop minor leaks.
Lubrication and Cleaning
For metal valves, occasional lubrication of the stem can maintain smooth operation. Flush the valve with clean water to remove debris that may affect sealing.
When to Replace Your Ball Valve
Replace the valve if you notice persistent leaks, corrosion, or difficulty turning the handle despite cleaning and lubrication.
Maximizing the Lifespan of Your 3/4 Ball Valve
By selecting the right material, installing it correctly, and maintaining it regularly, you can ensure your 3/4 ball valve operates efficiently for years. Whether in residential plumbing, irrigation, or industrial applications, this small but powerful component plays a big role in system performance.
